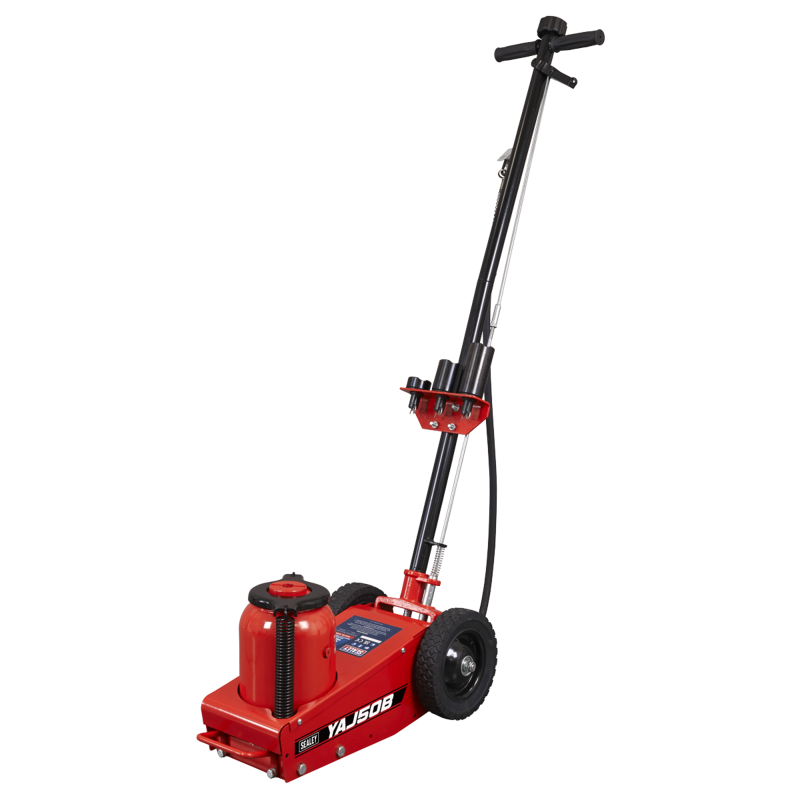

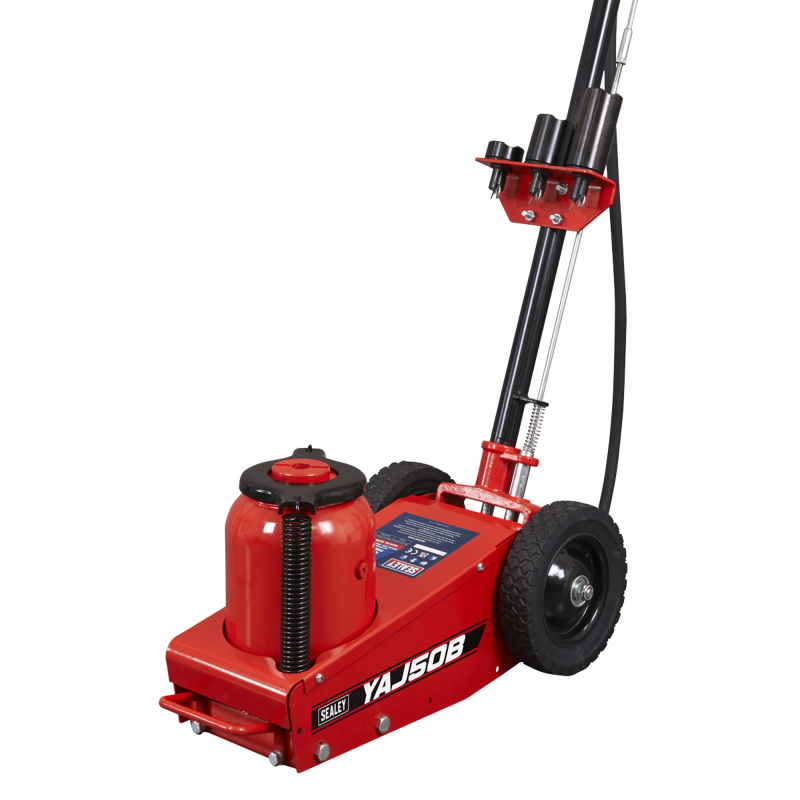

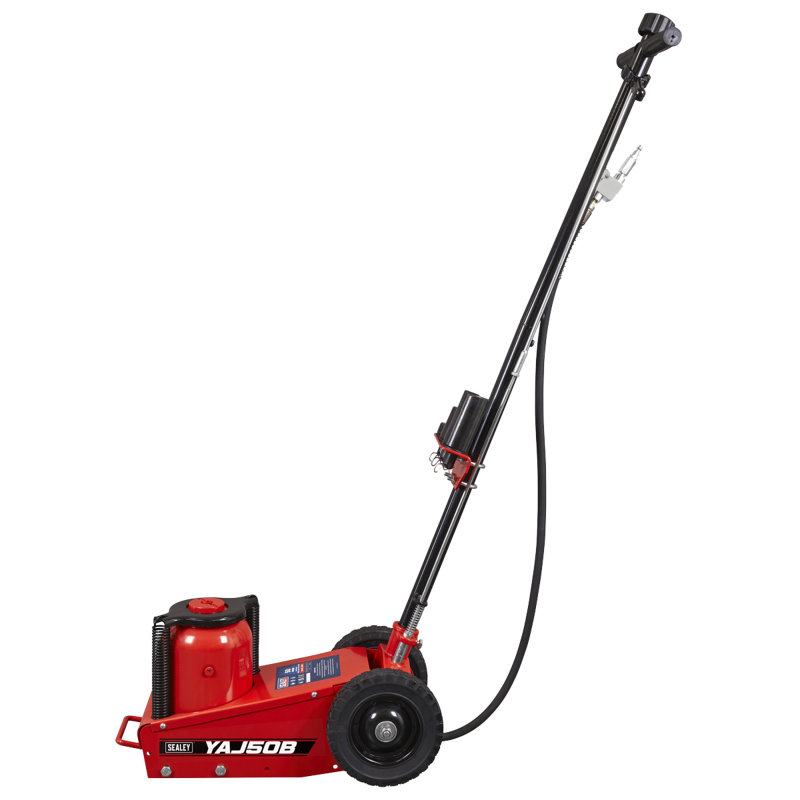

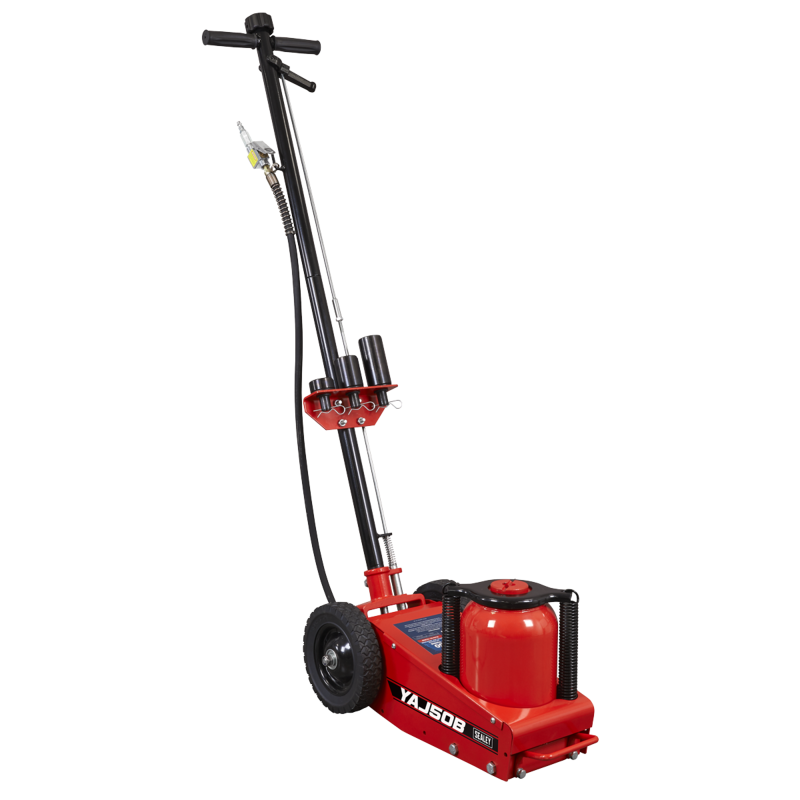

Sealey YAJ50B Air Operated Single Stage Trolley Jack 50 Tonne
Also Try
Chain Blocks & Hoists
Cranes
Tie Downs
Creepers & Seats
Vehicle Lifts
Buy Now
Qty:
Product Specification
Air Consumption
9.5cfm
Brand
Sealey
Capacity
50 Tonne
Extensions
20/60/90mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)
555mm
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)
595mm
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)
625mm
Minimum Saddle Height
288mm
Model No
YAJ50B
Nett Weight
57kg
Piston Stroke
155mm
Screw Extension
121mm
Working Pressure
109-123psi
Reference
YAJ50B
Quick Order Code
BB-556611
Product Description
HEAVY-DUTY HYDRAULICS - Powerful and reliable, ideal for workshop or roadside use.AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
SAFETY LOCK - Dead mans control and sectional pump handle for manual operation, when air is unavailable.
JACKING POINT EXTENSIONS - Supplied with 20/60/90mm extensions to close the gap between the saddle of the jack and the jacking point.
LOWERING SYSTEM - Automatic dual spring controlled.
OVERLOAD SAFETY VALVE - Safety valve fitted to prevent damage to the unit.
