Quick Code: BB-556164

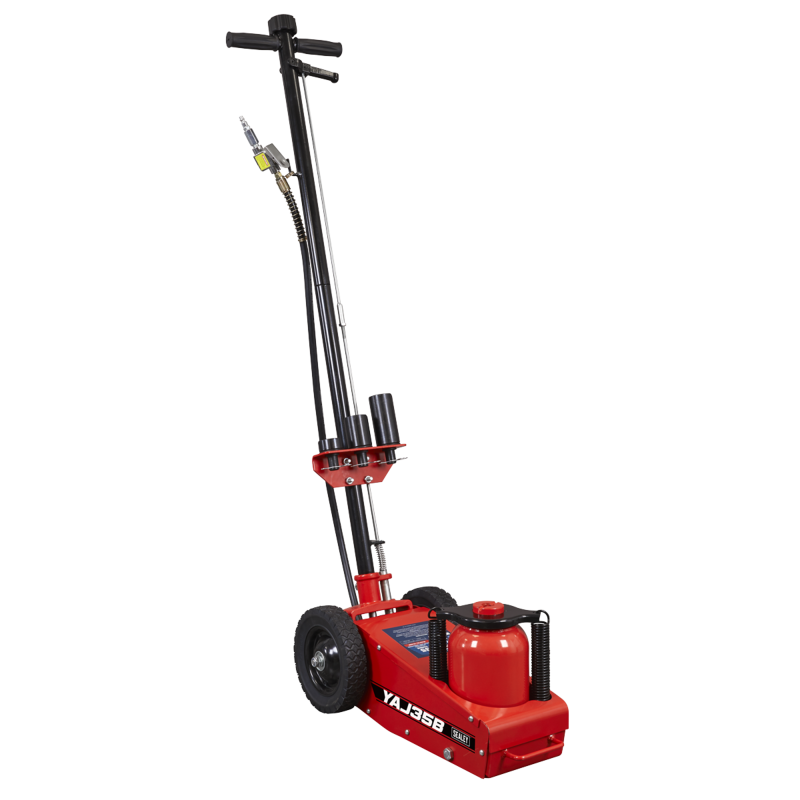

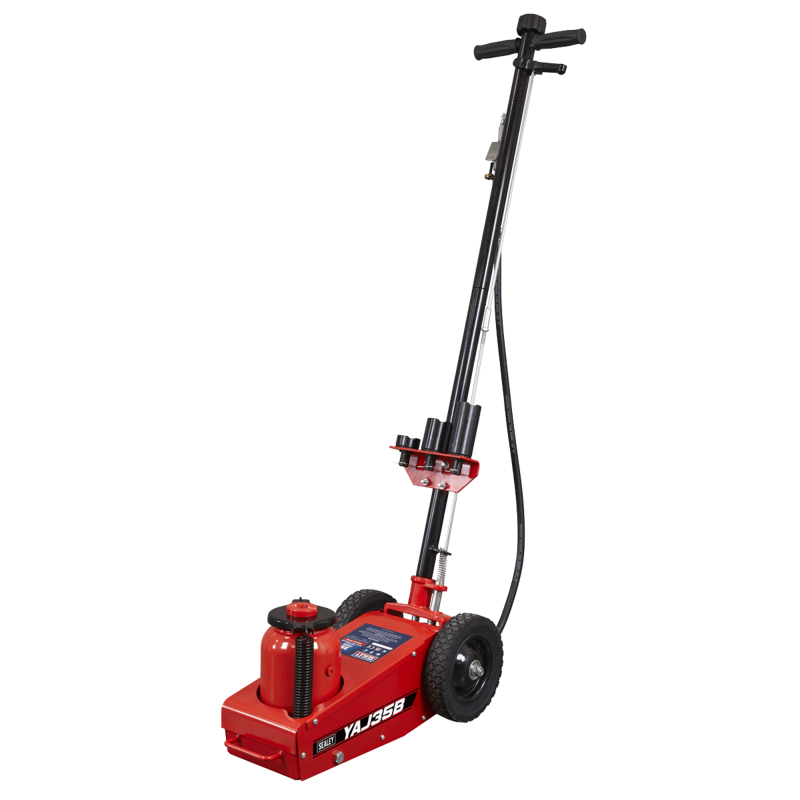

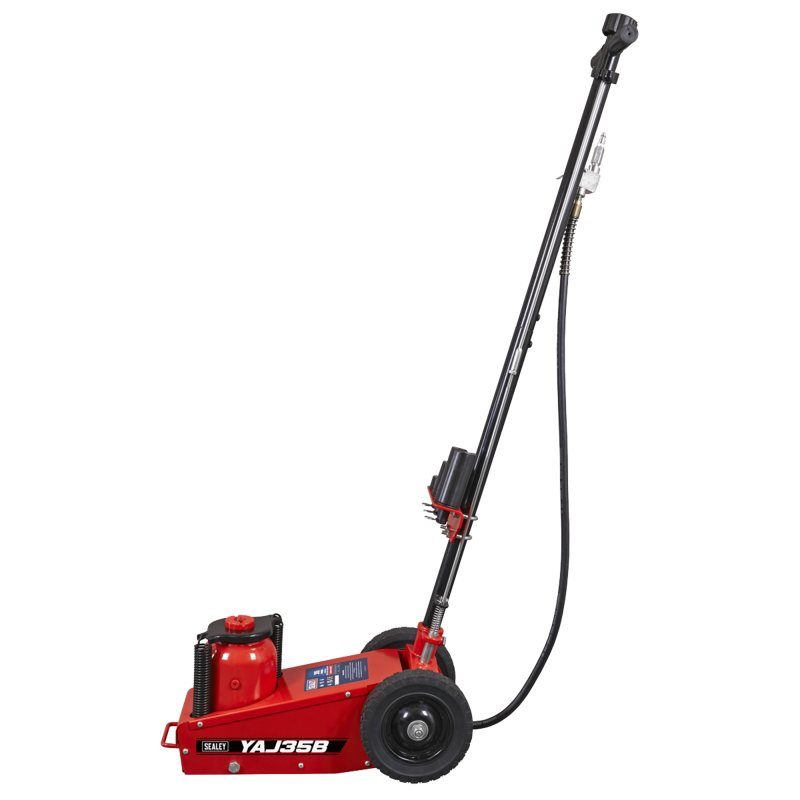

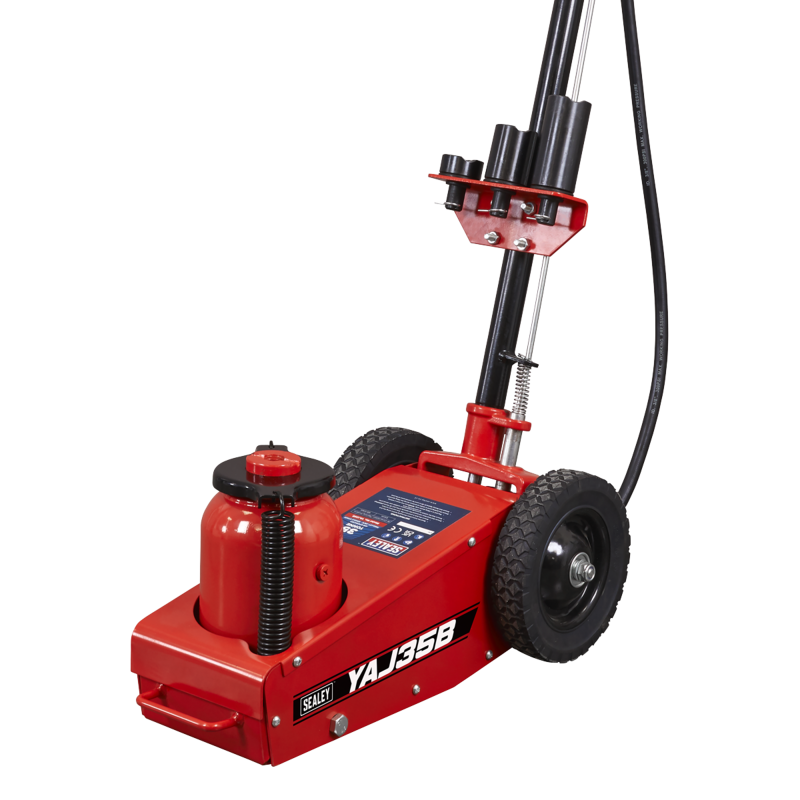

Sealey YAJ35B Air Operated Single Stage Trolley Jack 35 Tonne
Also Try
Chain Blocks & Hoists
Cranes
Tie Downs
Creepers & Seats
Vehicle Lifts
Buy Now
Qty:
Product Specification
Air Consumption
9.5cfm
Brand
Sealey
Capacity
35 Tonne
Extensions
20/60/100mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne)
554mm
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne)
594mm
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne)
634mm
Minimum Saddle Height
264mm
Model No
YAJ35B
Nett Weight
41kg
Piston Stroke
148mm
Screw Extension
125mm
Working Pressure
109-123psi
Reference
YAJ35B
Quick Order Code
BB-556164
Product Description
HEAVY-DUTY HYDRAULICS - Powerful and reliable, ideal for workshop or roadside use.AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
SAFETY LOCK - Dead mans control and sectional pump handle for manual operation, when air is unavailable.
JACKING POINT EXTENSIONS - Supplied with 20/60/100mm extensions to close the gap between the saddle of the jack and the jacking point.
LOWERING SYSTEM - Automatic dual spring controlled.
OVERLOAD SAFETY VALVE - Safety valve fitted to prevent damaged to the unit.
