Quick Code: BB-83485

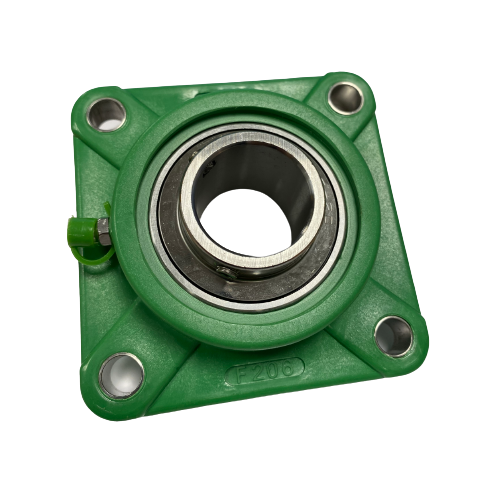

TP-SUCF206-20 1-1/4inch Thermoplastic 4 Bolt Flange Bearing (Green)
Also Try
Thermoplastic 2 Bolt Flanged
Thermoplastic Pillow Block
Thermoplastic Take Up Unit
SPZ Section Cast Iron - Taper Lock
2517 Taper Bushes
Male Tapered Hose Tail BSPT
Parallel Male to Female Adaptor
Buy Now
Qty:
Product Specification
Bolt Hole Centre
83mm
Bolt Hole Size
M10
Length/Width
107mm
Overall Height
41.4mm
Shaft Dia
31.75mm = 1-1/4inch
Reference
FPL206-20SSN-GREEN
Brand
LDK
Quick Order Code
BB-83485
Product Description
The TP-SUCF206-20 1-1/4inch Thermoplastic 4 Bolt Flange Bearing (Green) is a specialized component designed for demanding food processing and hygienic environments. This high-performance bearing combines durability with exceptional corrosion resistance, making it an ideal solution for challenging industrial applications.
Key Features:
- Green thermoplastic construction
- Specifically engineered for food processing applications
- Superior corrosion resistance
- 4-bolt flanged design for secure and stable mounting
- Compact and lightweight design
Technical Specifications:
- Shaft Diameter: 31.75mm (1-1/4 inch)
- Bolt Hole Centre: 83mm
- Bolt Hole Size: M10
- Overall Length: 107mm
- Overall Height: 41.4mm
Recommended Applications:
- Food processing machinery
- Beverage production equipment
- Hygienic manufacturing environments
- Agricultural processing systems
- Clean room and sterile manufacturing equipment
Reference: FPL206-20SSN-GREEN
Brand: LDK
Engineered to meet the highest standards of hygiene and performance, this green thermoplastic bearing provides reliable operation with minimal maintenance, ensuring optimal efficiency in sensitive industrial environments.
