Quick Code: BB-518472

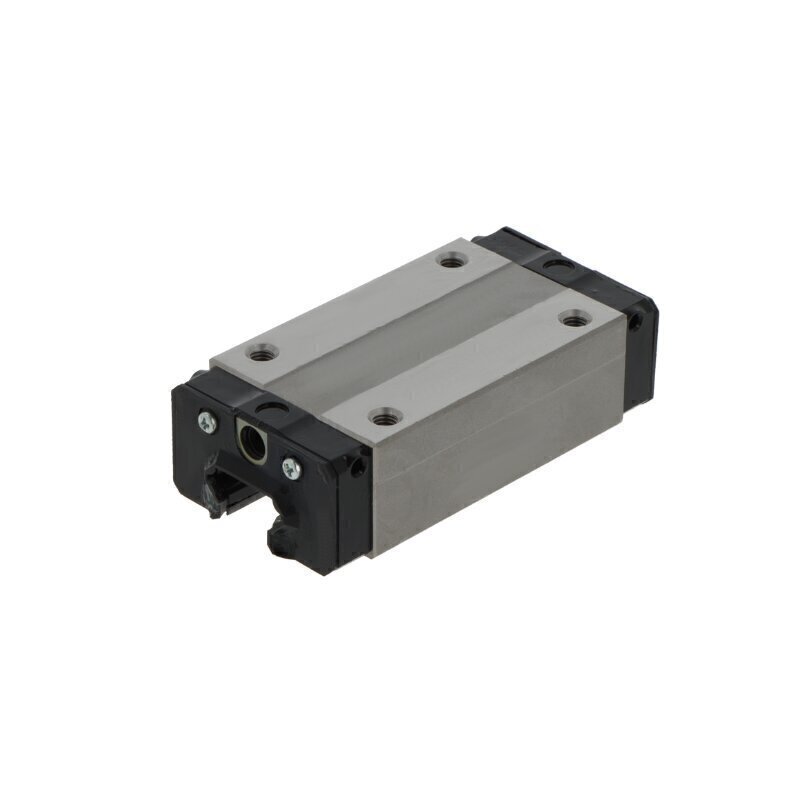

SHS25 LRSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
INA Carriages
NSK Carriages
Ewellix Carriages
Plasterers & Finishing Trowels
Sheet Metal Punches
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Four Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Small and long design
Reference
SHS25LRSS
Additional Reference:
10130380
Quick Order Code
BB-518472
Product Description
The SHS25 LRSS THK Carriage is a precision linear motion component engineered for applications requiring compact, reliable performance in demanding industrial environments. This block carriage delivers smooth, accurate movement when paired with THK linear guide rails, making it an ideal choice for automation equipment, manufacturing machinery, CNC systems, precision positioning applications, and space-constrained installations.
Key Features:
- Design: Block carriage configuration providing robust mounting capabilities and stable linear motion
- Series: 25 series – part of our comprehensive range of precision carriages with proven performance across industrial sectors
- Rolling Elements: Four-row ball type for enhanced load distribution, stability, and consistent motion accuracy
- Small and Long Design: Optimized compact form factor combined with extended length for specific application requirements, ideal for space-constrained environments without compromising load capacity
- Construction: Durable steel and plastic materials for longevity, reliability, and corrosion resistance
- Ball Chain: With ball chain for enhanced recirculation and smooth carriage movement
Performance & Protection:
- Tolerance Class: Normal Class for reliable standard precision requirements in typical industrial environments
- Preload: Normal preload for balanced performance, minimal play, and smooth operation
- Temperature Range: -20 to +80°C, suitable for diverse industrial environments and varying operational conditions
- Sealing System: End seals, sealing strips, and inner seals provide comprehensive contamination protection and extended component life
- Lubrication: Can be relubricated via lubrication nipple for extended service life, reduced maintenance downtime, and optimal performance
The SHS25 LRSS carriage combines precision engineering with practical durability, delivering consistent, reliable performance across a wide range of industrial positioning, automation, and motion control tasks.
