Quick Code: BB-522396

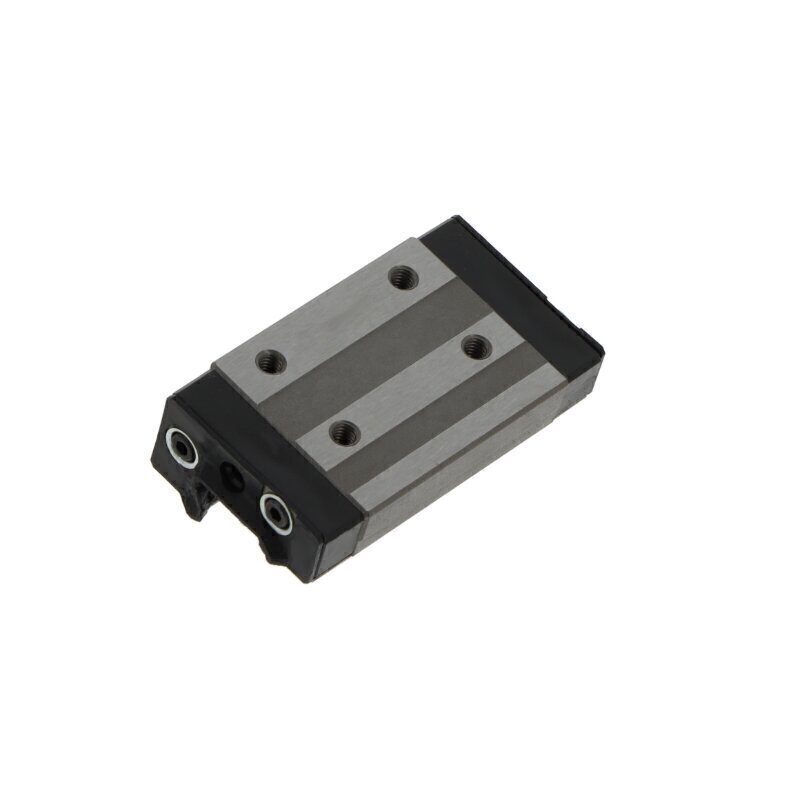

GSR30 TSS THK Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
THK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Normal preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-20 to +80 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
With semi-profile
Reference
GSR30TSS
Additional Reference:
10142416
Quick Order Code
BB-522396
Product Description
The GSR30 TSS THK Carriage is a precision linear motion component engineered for seamless integration with THK linear guide rails. Part of the versatile 30 series, this block carriage delivers reliable accuracy and smooth movement across diverse industrial applications requiring consistent performance with a compact design profile.
Key Features:
- Design: Block carriage configuration with semi-profile version for optimized load distribution and streamlined integration
- Series: 30 series offering balanced load capacity and durability for standard to moderate-duty industrial applications
- Rolling Elements: Double-row ball type arrangement providing smooth operation, reliable stability, and consistent precision across various applications
- Materials: Durable steel and plastic construction engineered for reliable long-term performance in industrial environments
- Preload: Normal preload setting providing balanced precision and load capacity for general-purpose applications
- Sealing System: Comprehensive multi-stage protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend component life in challenging environments
- Lubrication: Relubrication capability via nipple for convenient maintenance and extended service life
- Tolerance Class: Normal class precision suitable for general industrial applications
- Temperature Range: Operates reliably between -20 to +80°C, accommodating both heated and cold industrial environments
- Configuration: Without ball chain for streamlined operation and reduced complexity
Applications:
The GSR30 TSS carriage is ideal for machinery and equipment requiring linear motion with moderate load capacity, including automated material handling systems, positioning equipment, precision machining centers, assembly automation platforms, and industrial machinery where reliable performance and compact integration are essential.
