Quick Code: BB-136573

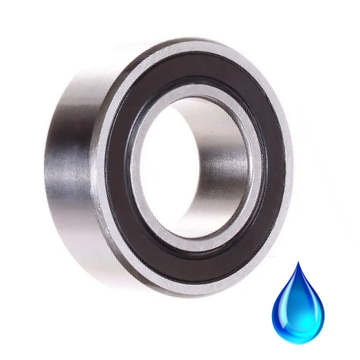

S3304-2RS Sealed Stainless Steel Double Row Angular Contact Bearing 20mm x 52mm x 22.2mm
S3304-2RS Sealed Stainless Steel Double Row Angular Contact Bearing
The S3304-2RS is a premium sealed stainless steel double row angular contact bearing engineered to handle demanding applications requiring superior combined radial and axial load capacity. With its robust 20mm x 52mm x 22.2mm dimensions and sealed design, this bearing delivers reliable performance in environments where corrosion resistance and contamination protection are critical.
Key Characteristics:
- Load Capacity: Dynamic load rating of 23,100N and static load rating of 14,500N for handling simultaneous radial and axial loads
- Double Row Configuration: Enhanced load capacity compared to single row bearings, accommodating axial loads in both directions
- Construction: Non-separable design with high-quality stainless steel material for superior durability
- Seal Type: 2RS sealed design providing complete protection against dust, moisture, and contaminants
- Dimensions: 20mm bore × 52mm outside diameter × 22.2mm width
- Material: Premium stainless steel construction for exceptional corrosion resistance
Ideal Applications:
The S3304-2RS is well-suited for demanding industrial environments including:
- Food processing and packaging equipment
- Marine and offshore applications
- Chemical processing systems
- Pharmaceutical manufacturing equipment
- High-speed machinery requiring corrosion resistance
- Wet or chemically aggressive environments
Its sealed stainless steel construction ensures exceptional longevity and minimal maintenance in harsh, moisture-rich, or chemically aggressive environments where standard bearings would fail or require frequent servicing.
