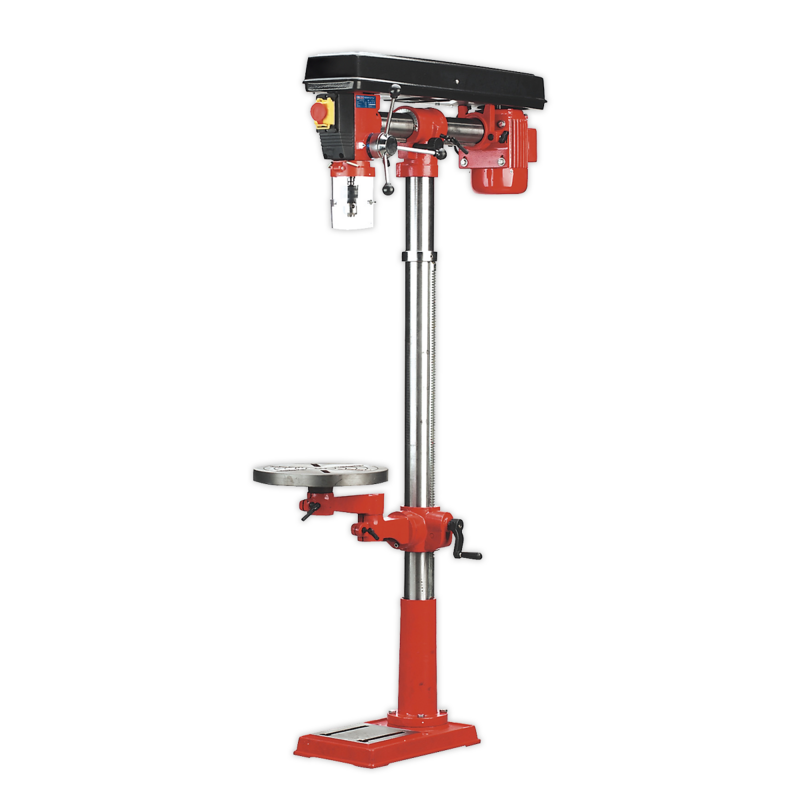

Sealey GDM1630FR Radial Pillar Drill Floor 5-Speed 550W/230V
Also Try
Guards
Accessories
Premier
Buy Now
Qty:
Product Specification
Base Size
420 x 250mm
Brand
Sealey
Collar Diameter
Ø60mm
Column Diameter
Ø70mm
Drilling Capacity (Chuck Size)
16mm
Maximum Distance Spindle to Base
1280mm
Maximum Distance Spindle to Table
830mm
Model No
GDM1630FR
Motor Power
550W
Nett Weight
59kg
Number of Speeds
5
Optional Accessories
GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height
1620mm
Radial Arm Travel
285mm
Speed Range
500-2450rpm
Spindle Centre to Column
420mm
Spindle Nose Taper
MT2
Spindle Travel
80mm
Supply
230V
Swing
840mm
Working Base Surface Size
210 x 190mm
Working Table Surface Size
Ø310mm
Reference
GDM1630FR
Quick Order Code
BB-446554
Product Description

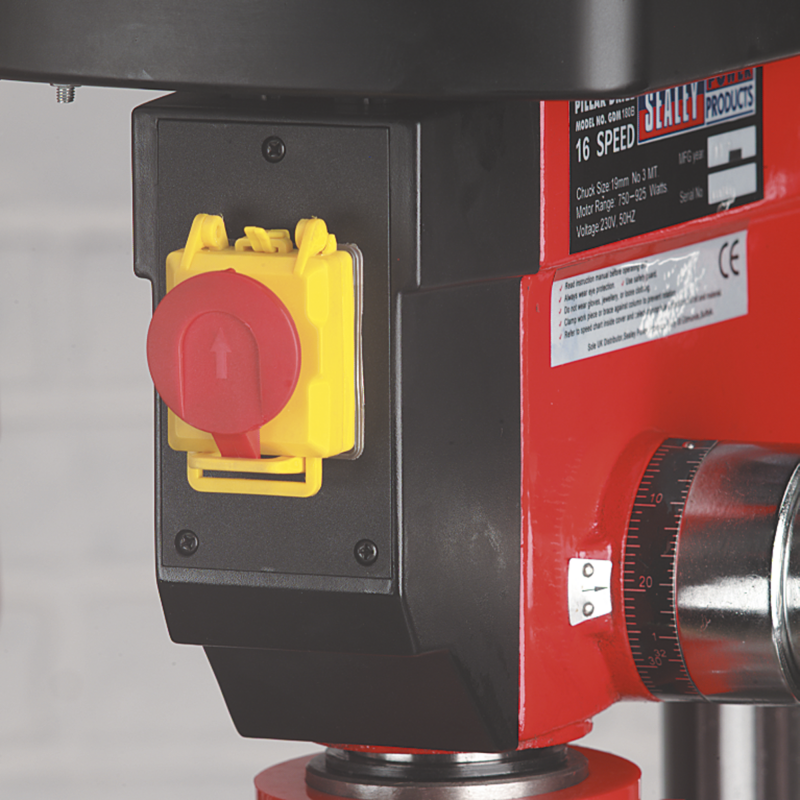

Heavy-duty construction.Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.
Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as bench mounting type - GDM790BR.
Mortise attachment available, order Model No. MA10.
16mm(5/8) Capacity chuck, MT2.
Height 1620mm.
Spindle Centre to Column - Max 420mm.
Motor Power 550W.
Column Diameter 70mm.
Spindle Travel 80mm.
Weight 59kg.
