Quick Code: BB-523043

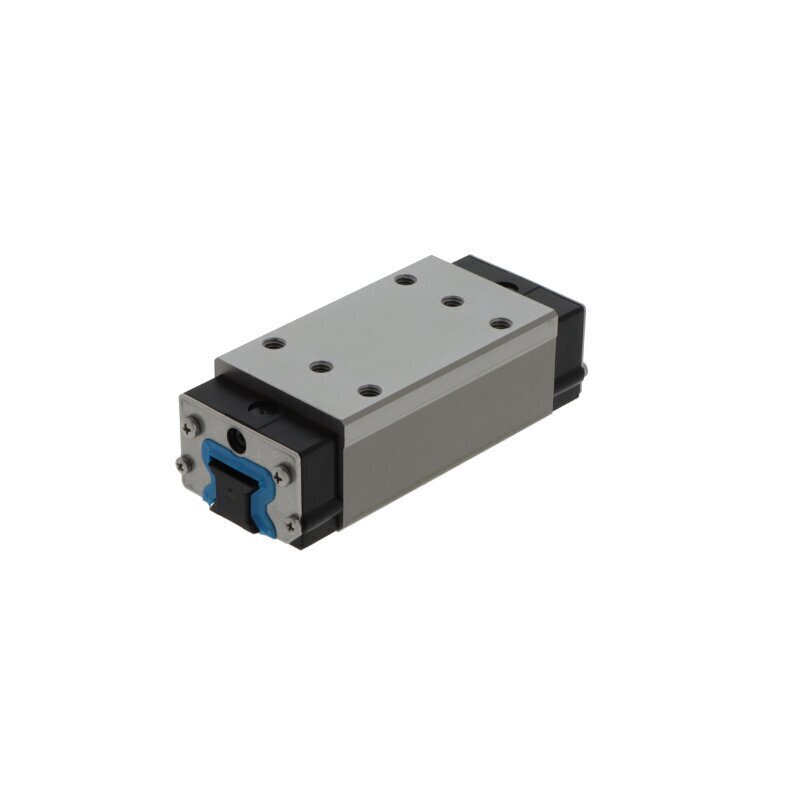

MRW65-D-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
INA Carriages
M Section Poly V Belts
Mitre Saws
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
65 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Rollers
Version
High, narrow, short type
Reference
MRW65DG3V1
Additional Reference:
10143726
Quick Order Code
BB-523043
Product Description
MRW65-D-G3-V1 Schneeberger Carriage
The MRW65-D-G3-V1 is a precision block carriage from Schneeberger's robust 65 series, engineered for high-performance linear motion applications requiring compact, narrow design. This carriage delivers reliable, smooth operation across demanding industrial environments with its optimized high, narrow, short type configuration.
Key Features:
- Design: Block carriage with high, narrow, short type configuration for space-constrained applications
- Rolling Elements: Four-row roller bearing system for enhanced load capacity and precision
- Preload: Light preload for optimal balance between rigidity and smooth operation
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals to extend service life
- Construction: Durable steel and plastic composition for strength and longevity
- Tolerance Class: G3 precision grade for consistent, repeatable positioning
- Operating Temperature Range: -40°C to +80°C for versatile environmental compatibility
- Maintenance: Relubrication capability via integrated lubrication nipple for extended service intervals
- Ball Chain: Without ball chain configuration
Applications:
Ideal for precision automation, CNC machinery, medical equipment, packaging systems, and industrial machinery where smooth linear motion, compact design, and reliable performance are essential. The narrow profile makes it particularly suitable for applications with space limitations while maintaining high load-carrying capacity.
Reference: MRW65DG3V1
