Quick Code: BB-523041

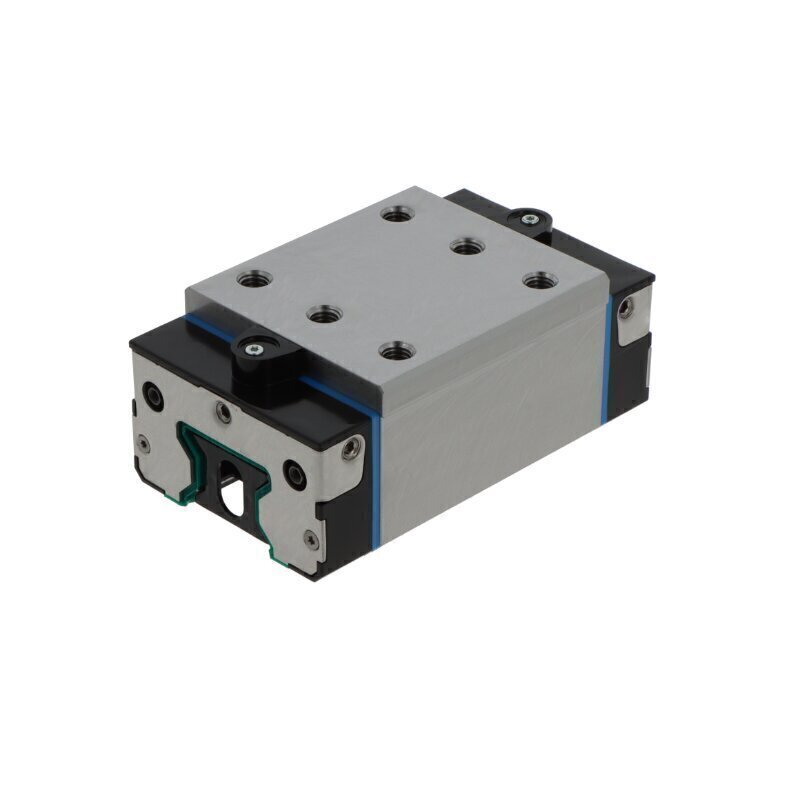

MRW65-C-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
65 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Rollers
Version
High and slimline design
Reference
MRW65CG3V1
Additional Reference:
10143724
Quick Order Code
BB-523041
Product Description
The MRW65-C-G3-V1 Schneeberger Carriage is a heavy-duty precision linear carriage from Schneeberger's 65 series, engineered for demanding industrial applications requiring smooth, reliable linear motion with exceptional load capacity.
Design & Construction
- Design Type: Block carriage with high and slimline design for compact, space-efficient installations
- Series: 65 series - designed for heavy-duty applications requiring superior load handling
- Rolling Elements: Four-row roller configuration for optimal load distribution, enhanced stability, and smooth operation
- Materials: Durable steel and plastic construction for longevity, reliability, and superior performance in demanding environments
- Ball Chain: Without ball chain for simplified maintenance and streamlined design
Performance Specifications
- Tolerance Class: G3 grade for high precision positioning and tight tolerances
- Preload: Light preload setting for reduced friction while maintaining exceptional accuracy and precision
- Temperature Range: -40°C to +80°C, suitable for extreme environmental conditions and diverse industrial settings
Sealing & Maintenance
- Sealing System: Comprehensive protection with end seals, sealing strips, and inner seals to effectively protect against contamination and extend operational life
- Lubrication: Can be relubricated via integrated lubrication nipple for extended service life, reduced downtime, and easy maintenance
Typical Applications
Ideal for heavy-duty industrial automation, large machinery positioning systems, material handling equipment, press systems, and precision manufacturing processes where robust linear motion, exceptional load capacity, and reliable performance are essential requirements.
Reference: MRW65CG3V1
