Quick Code: BB-530007

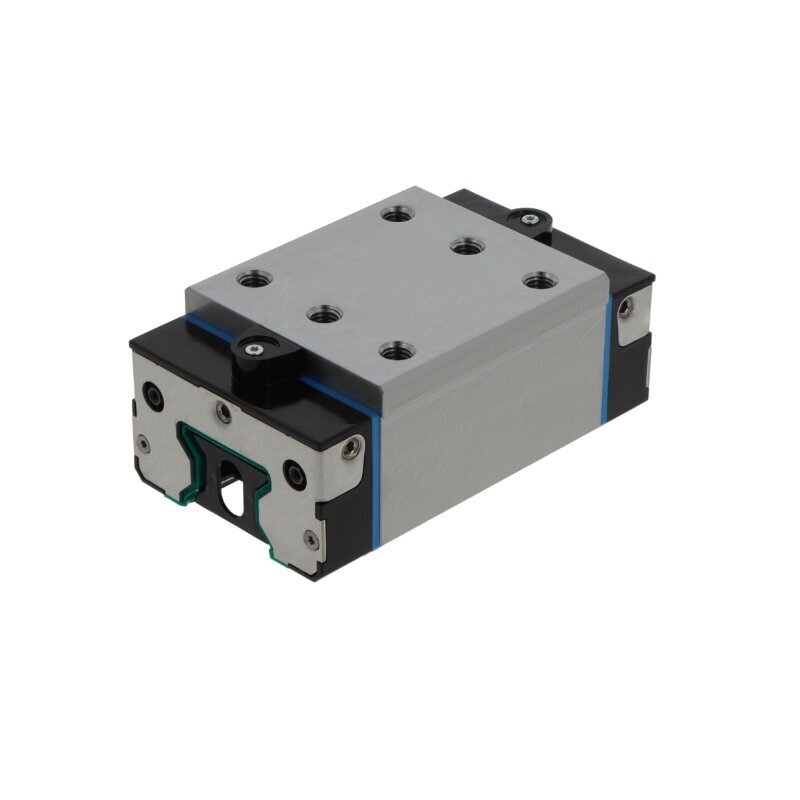

MRW65-C-G1-V3 Schneeberger Carriage
The MRW65-C-G1-V3 Schneeberger Carriage is a high-precision block carriage from the 65 series, engineered for demanding linear motion applications requiring exceptional accuracy and rigidity. This premium carriage features a high and slimline design profile, combining compact footprint with superior load-bearing capabilities and precision performance.
Key Specifications:
- Series: 65 series
- Design: Block carriage with high and slimline design profile
- Rolling Elements: Roller-based system with four rows for superior load distribution, stability, and precision alignment
- Tolerance Class: G1 for exceptional precision positioning and repeatability
- Preload: High preload configuration for maximum rigidity and positioning accuracy in dynamic applications
- Ball Chain: Without ball chain for simplified installation and maintenance
Construction & Durability:
- Material: Durable steel and plastic construction
- Sealing System: Comprehensive protection with end seals, sealing strips, and inner seals to prevent contamination and ensure longevity
- Temperature Range: -40 to +80°C, suitable for extreme and variable environmental conditions
- Lubrication: Relubrication capability via dedicated lubrication nipple for extended operational service life and reduced maintenance intervals
Applications:
The MRW65-C-G1-V3 is ideal for high-precision industrial automation, large-format machine tools, precision packaging machinery, semiconductor processing equipment, and other applications demanding exceptional accuracy with substantial load capacity. The combination of the 65 series robustness with G1 precision class and high preload makes it particularly suitable for heavy-duty systems where both rigidity and positioning accuracy are critical requirements.
Brand: Schneeberger | Reference: MRW65CG1V3
