Quick Code: BB-523015

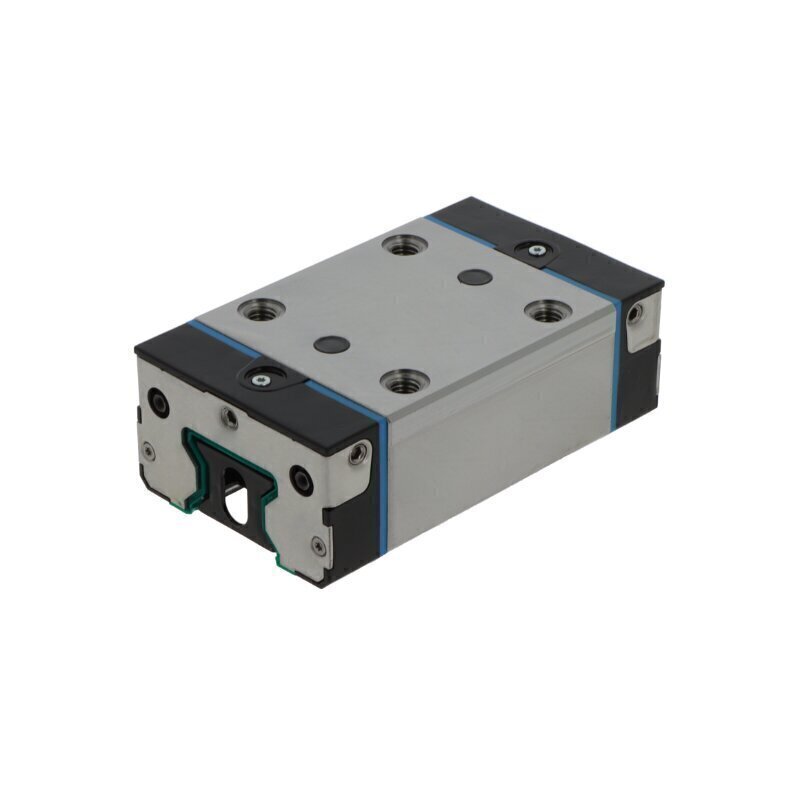

MRW25-F-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Rollers
Version
Small design
Reference
MRW25FG3V1
Additional Reference:
10143686
Quick Order Code
BB-523015
Product Description
The MRW25-F-G3-V1 is a precision block carriage from Schneeberger's 25 series, engineered for demanding linear motion applications requiring smooth, reliable performance across a wide temperature range.
Key Specifications:
- Design: Compact block carriage with small design profile
- Rolling Elements: Four rows of rollers for superior load distribution and stability
- Preload: Light preload configuration for smooth operation with minimal friction
- Tolerance Class: G3 – precision grade suitable for high-accuracy applications
- Materials: Durable steel and plastic construction
- Sealing System: End seals, sealing strips, and inner seals for protection against contamination
- Operating Temperature Range: -40°C to +80°C, ideal for both extreme cold and warm environments
- Lubrication: Relubrication capability via integrated lubrication nipple for extended service life
- Ball Chain: Without ball chain configuration
Applications:
This carriage is ideal for precision automation systems, CNC machinery, industrial robots, and positioning equipment where compact size, smooth linear motion, and reliability in varied temperature conditions are essential.
Reference: MRW25FG3V1 | Brand: Schneeberger
