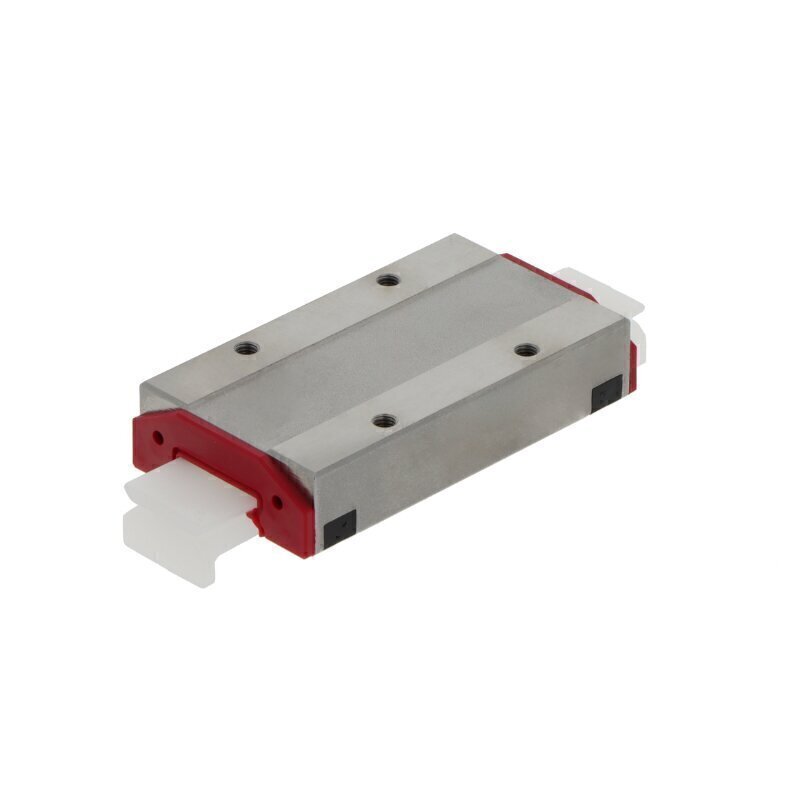

MNNXL9-G3 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
9 series
Temperature range
-10 to +100 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Standard version
Reference
MNNXL9G3
Additional Reference:
10162755
Quick Order Code
BB-527762
Product Description
The MNNXL9-G3 is a precision block carriage from Schneeberger's 9 series, designed for linear motion applications requiring reliable performance and compact installation. This carriage combines advanced engineering with practical durability, making it suitable for a wide range of industrial and automation environments.
Key Specifications:
- Rolling Elements: Double row of balls for balanced load distribution and smooth, consistent motion
- Design: Block carriage configuration optimized for space-efficient installations
- Tolerance Class: G3 precision grade for accurate positioning in standard industrial applications
- Sealing: Comprehensive sealing system including end seals, sealing strips, and inner seals to protect against contamination and extend service life
- Materials: Steel with anti-corrosion protection and plastic components for enhanced durability and resistance to environmental conditions
- Temperature Range: Operates reliably from -10°C to +100°C, suitable for diverse industrial environments
- Maintenance: Relubrication capability via integrated lubrication nipple for convenient maintenance and extended operational life
- Ball Chain: No ball chain configuration for simplified design and reduced complexity
Features:
- Streamlined block carriage design for compact, space-saving installations
- Double row ball configuration ensures stable, smooth linear motion
- Robust construction with anti-corrosion protection for reliable performance in challenging environments
- Low-maintenance design with accessible lubrication points
The MNNXL9-G3 is ideal for industrial automation, machinery, material handling systems, and other applications where dependable linear motion, compact design, and straightforward maintenance are essential requirements.
