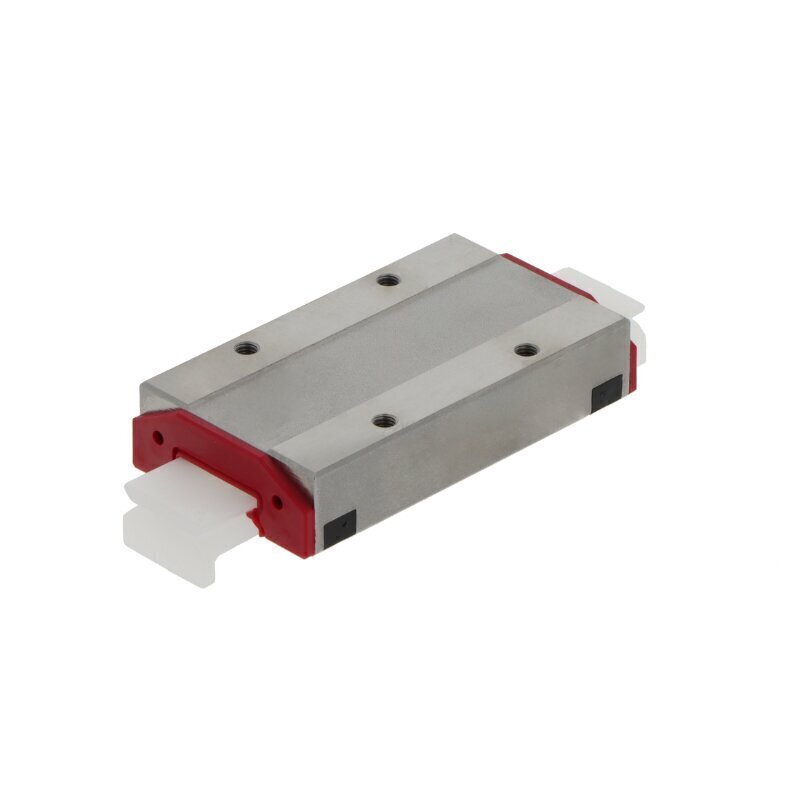

MNNXL15-G1 Schneeberger Carriage
The MNNXL15-G1 Schneeberger Carriage is a precision block carriage from Schneeberger's proven 15 series, engineered for high-accuracy linear motion applications requiring exceptional tolerance performance. This compact yet versatile carriage delivers reliable guidance in demanding industrial environments while maintaining the smooth operation and precision that Schneeberger is renowned for.
Design & Construction
- Design Type: Block carriage with compact form factor for flexible installation in space-constrained applications
- Rolling Elements: Double-row ball configuration for smooth, balanced linear motion and efficient load distribution
- Materials: Steel with anti-corrosion protection and plastic composite construction for durability, longevity, and reliable performance in diverse environments
- Ball Chain: Without ball chain for simplified maintenance and streamlined design
Performance Specifications
- Tolerance Class: G1 for exceptional precision and repeatability in demanding positioning applications
- Series: 15 series, part of Schneeberger's established lineup of high-performance linear guidance solutions
- Temperature Range: -10°C to +100°C, providing broad environmental capability for diverse industrial and specialized applications
- Version: Standard version configuration
Sealing & Maintenance
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to effectively exclude dust and contaminants
- Lubrication: Can be relubricated via integrated lubrication nipple for convenient on-site maintenance and extended service intervals
Ideal Applications
The MNNXL15-G1 is exceptionally well-suited for precision automation systems, CNC machine tools, coordinate measuring machines, high-temperature industrial equipment, semiconductor manufacturing applications, precision assembly systems, and other applications demanding high accuracy, extended temperature operation, and reliable linear guidance. Its enhanced temperature range and G1 tolerance class make it particularly valuable in specialized industrial environments where superior precision and thermal stability are critical requirements.
Reference: MNNXL15G1
