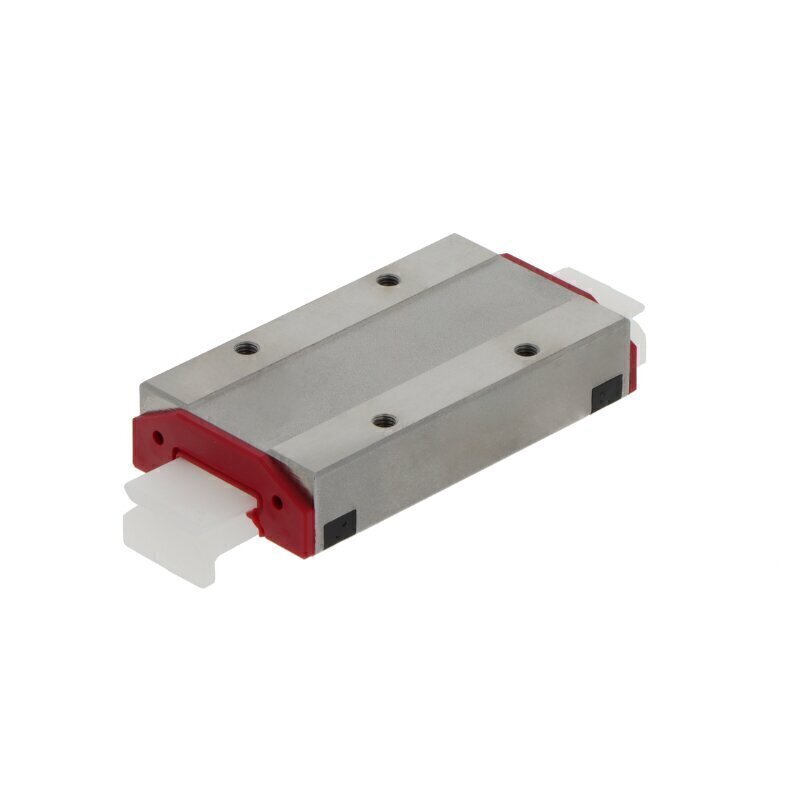

MNNS15-G1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
Standard version
Reference
MNNS15G1
Additional Reference:
10162744
Quick Order Code
BB-527753
Product Description
The MNNS15-G1 is a precision block carriage from Schneeberger's compact 15 series, engineered for high-precision linear motion applications. This advanced carriage delivers exceptional accuracy and reliability, making it ideal for demanding automation systems, precision measurement instruments, and applications where superior positional accuracy is critical.
Key Features & Specifications:
- Design: Compact block carriage configuration optimized for precision positioning and space-constrained installations
- Rolling Elements: Double-row precision ball bearing system for smooth, accurate linear travel with optimized load distribution
- Tolerance Class: G1 for ultra-high precision applications, delivering exceptional accuracy and repeatability
- Series: 15 series—compact profile suitable for applications requiring minimal footprint without compromising performance
- Preload: Engineered for precision maintenance while ensuring smooth operation and minimal friction
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to prevent contamination in harsh industrial environments
- Materials: Durable steel with anti-corrosion protection and reinforced plastic construction for enhanced reliability and longevity
- Lubrication: User-relubrication capability via integrated lubrication nipple for extended service life and reduced maintenance intervals
- Operating Temperature: -10°C to +100°C for versatile performance across diverse industrial and specialized applications
- Configuration: Supplied without ball chain for flexible integration into custom linear motion systems
Applications:
Ideal for high-precision CNC machinery, semiconductor processing equipment, medical diagnostic devices, optical systems, precision measurement instruments, and automation systems where ultra-tight tolerances, repeatability, and compact design are essential requirements.
Brand: Schneeberger | Reference: MNNS15G1
