Quick Code: BB-527750

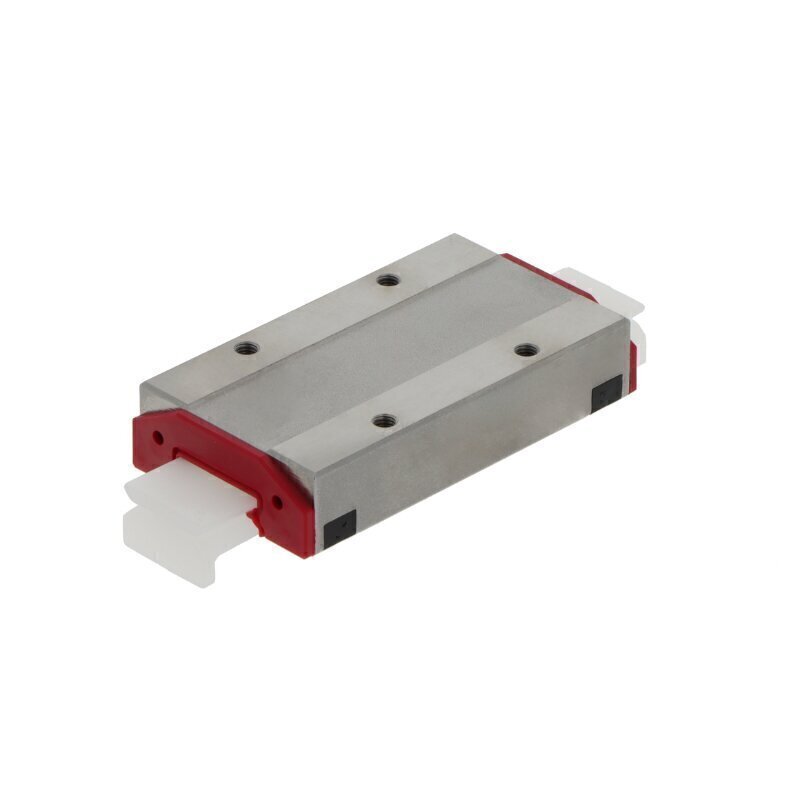

MNNS12-G3 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
12 series
Temperature range
-10 to +100 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Standard version
Reference
MNNS12G3
Additional Reference:
10162740
Quick Order Code
BB-527750
Product Description
The MNNS12-G3 Schneeberger Carriage is a precision block carriage from Schneeberger's 12 series, engineered for demanding linear motion applications requiring high precision, reliability, and robust performance in diverse industrial environments.
Design & Construction
- Design Type: Block carriage with compact, space-efficient configuration
- Series: 12 series - designed for precision applications requiring reliable linear guidance
- Rolling Elements: Double-row ball bearing configuration for smooth operation and balanced load distribution
- Materials: Durable steel with anti-corrosion protection and plastic construction for enhanced longevity and superior performance in demanding environments
- Ball Chain: Without ball chain for simplified design and reduced maintenance requirements
Performance Specifications
- Tolerance Class: G3 grade for high precision positioning and tight tolerances
- Version: Standard version optimized for reliable, consistent performance
- Temperature Range: -10°C to +100°C, suitable for diverse industrial and environmental conditions
Sealing & Maintenance
- Sealing System: Comprehensive protection with end seals, sealing strips, and inner seals to effectively protect against contamination and extend operational life
- Lubrication: Can be relubricated via integrated lubrication nipple for extended service life, reduced downtime, and easy maintenance
Typical Applications
Ideal for precision automation systems, industrial machinery, material handling equipment, assembly line systems, and general-purpose precision manufacturing processes where reliable linear motion and consistent performance are essential requirements.
Reference: MNNS12G3
