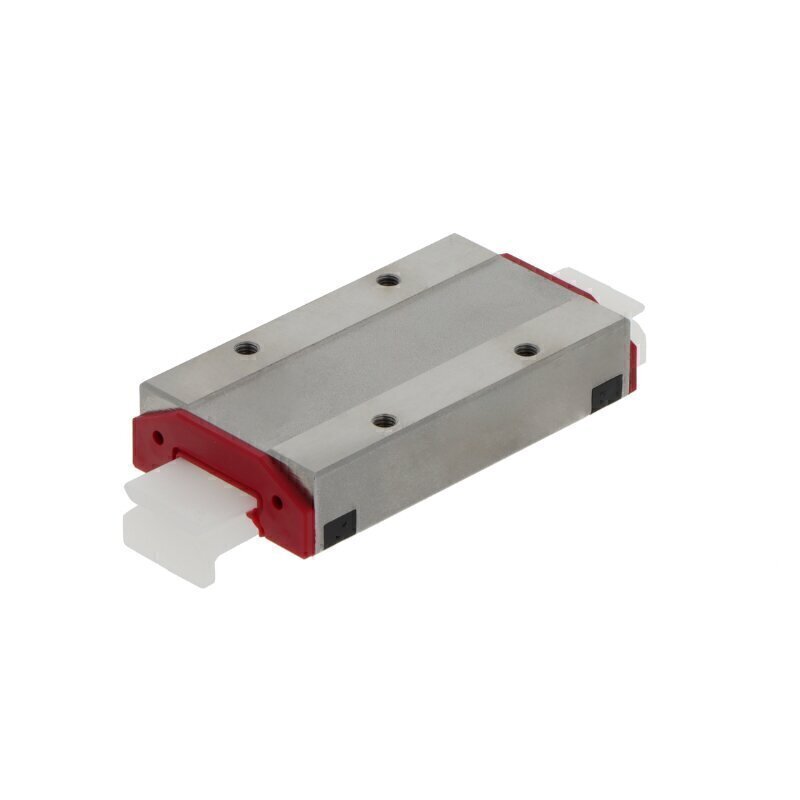

MNNL14-G3 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
14 series
Temperature range
-10 to +100 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Standard version
Reference
MNNL14G3
Additional Reference:
10162732
Quick Order Code
BB-527742
Product Description
The MNNL14-G3 Schneeberger Carriage is a precision linear carriage engineered for reliable performance in demanding industrial applications. This block carriage features advanced ball bearing technology and is designed to deliver consistent, smooth linear motion across a wide range of operating conditions.
Key Features:
- Design: Block carriage configuration for versatile mounting and integration into linear motion systems
- Rolling Elements: Double-row ball bearing system providing excellent load capacity, precision, and smooth operation
- Tolerance Class: G3 precision grade ensuring consistent, repeatable positioning for high-precision applications
- Series: Part of Schneeberger's proven 14 series linear carriage line
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to prevent contamination and extend service life in challenging environments
- Materials: Durable steel with anti-corrosion protection combined with plastic components for optimal strength, reliability, and environmental resistance
- Relubrication Capability: Equipped with integrated lubrication nipple for easy maintenance, extended service intervals, and reduced downtime
- Operating Temperature Range: -10°C to +100°C for reliable performance across diverse environmental conditions
- Ball Chain: Supplied without ball chain for flexible system design and customization
- Version: Standard version for immediate deployment in standard industrial applications
Applications:
Ideal for precision automation systems, CNC machinery, industrial machinery, packaging equipment, material handling systems, and other applications where reliable linear motion, moderate load capacity, and precise positioning are required. The extended temperature range makes this carriage particularly suitable for both heated industrial environments and cooler operational settings.
Reference: MNNL14G3 | Brand: Schneeberger
