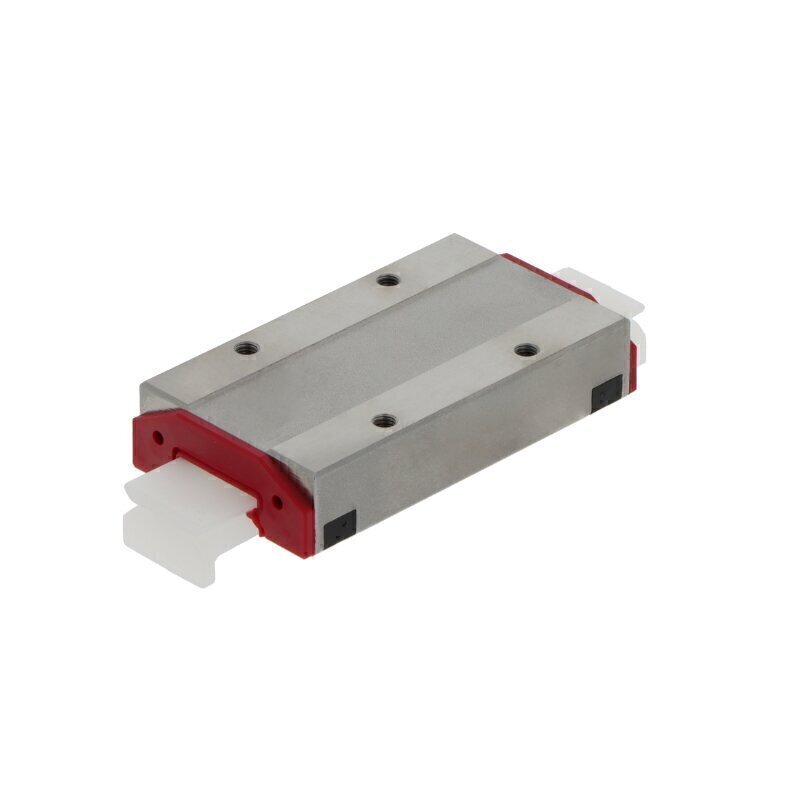

MNN14-G1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel (with Anti-Corrosion Protection), Plastic
Seal
End Seals, Sealing Strips and Inner Seals
Series
14 series
Temperature range
-10 to +100 °C
Tolerance class
G1
Type of rolling elements
Balls
Version
Standard version
Reference
MNN14G1
Additional Reference:
10162722
Quick Order Code
BB-527736
Product Description
The MNN14-G1 Schneeberger Carriage is a precision block carriage designed for linear motion applications requiring reliable performance and smooth operation. This standard version carriage combines robust engineering with practical maintenance features, making it ideal for industrial automation, machinery positioning, and precision guidance systems.
Key Features:
- Double Row Ball Design: Dual rows of ball rolling elements provide enhanced load capacity and stability
- Block Carriage Configuration: Compact and rigid design suitable for space-constrained applications
- Relubrication Capability: Features integrated lubrication nipples for convenient maintenance and extended service life
- Comprehensive Sealing System: End seals, sealing strips, and inner seals protect against contamination and extend component longevity
- Temperature Versatility: Operates reliably across a wide temperature range from -10°C to +100°C
- Premium Materials: Steel construction with anti-corrosion protection and plastic components for optimal performance and durability
- Series 14 Standard: Tolerance class G1 ensures precision guidance and smooth linear motion
Technical Specifications:
- Ball Chain: Without ball chain
- Rolling Elements: Balls
- Series: 14
- Tolerance Class: G1
- Brand: Schneeberger
- Reference: MNN14G1
The MNN14-G1 is an excellent choice for applications demanding dependable linear motion with minimal maintenance requirements.
