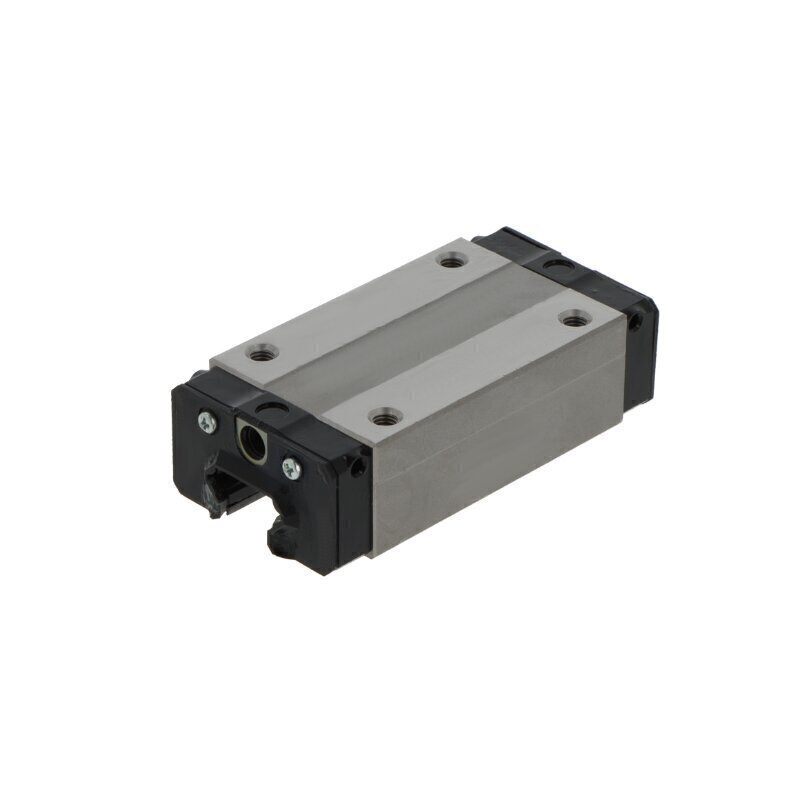

BMW45-G-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Small and long design
Reference
BMW45GG3V1
Additional Reference:
10143675
Quick Order Code
BB-523006
Product Description
The BMW45-G-G3-V1 Schneeberger Carriage is a precision block carriage designed for demanding linear motion applications. This high-performance linear carriage combines robust engineering with reliable operation across a wide temperature range.
Key Specifications:
- Series: 45 series
- Design: Block carriage with small and long design options
- Rolling Elements: Four rows of precision balls for smooth, consistent motion
- Preload: Light preload configuration for optimal performance
- Tolerance Class: G3 for precise applications
- Construction: Steel and plastic materials for durability
- Sealing System: End seals, sealing strips, and inner seals for extended protection
- Operating Temperature: -40°C to +80°C
- Ball Chain: Without ball chain
Maintenance & Features:
The carriage features user-friendly relubrication capability via integrated lubrication nipples, enabling easy maintenance and extended service life without requiring disassembly. The comprehensive sealing system protects against contaminants while maintaining smooth operation.
Applications:
Ideal for precision machinery, automation equipment, industrial positioning systems, and applications requiring reliable linear motion in temperature-sensitive environments.
