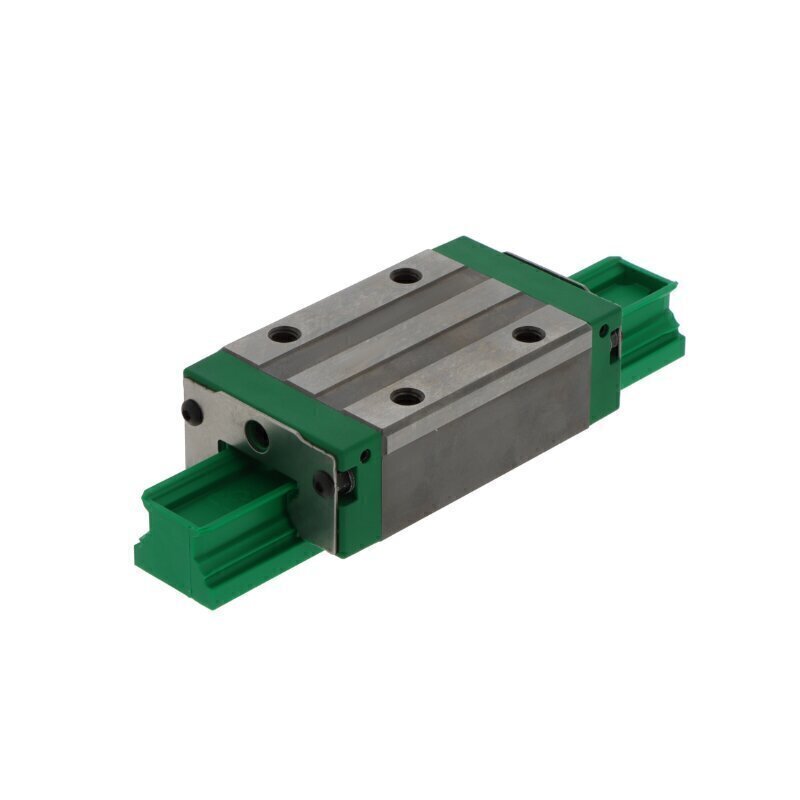

BMW30-L-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
BMW30LG3V1
Additional Reference:
10157108
Quick Order Code
BB-526497
Product Description
The BMW30-L-G3-V1 is a precision block carriage from Schneeberger's renowned 30 series, engineered for demanding linear motion applications requiring a compact, low-profile design. This high-performance linear carriage combines exceptional reliability with space-efficient dimensions, making it ideal for automation systems, machine tools, and precision positioning equipment where vertical clearance is limited.
Key Features:
- Four-Row Ball Configuration: Delivers superior load distribution and smooth linear motion with ball-type rolling elements for optimal performance and precision
- G3 Tolerance Class: Meets stringent precision requirements for applications demanding high accuracy and repeatable positioning
- Slimline and Low Design: Ultra-compact form factor enables seamless integration into space-constrained mounting areas, ideal for applications with limited vertical envelope while maintaining robust load capacity
- Block Carriage Construction: Robust steel and plastic design provides durability and stability across extended service life
- Comprehensive Sealing System: End seals, sealing strips, and inner seals protect against contamination and extend operational longevity in challenging environments
- Light Preload: Optimized preload setting balances smoothness with minimal friction for efficient motion control
- Relubrication Capability: Features integrated lubrication nipples for convenient maintenance and extended service intervals
- Wide Temperature Range: Operates reliably from -40°C to +80°C, suitable for diverse environmental conditions
- No Ball Chain Configuration: Streamlined design without ball chain for applications where this feature is unnecessary
Ideal Applications: Precision automation systems, CNC machine tools, coordinate measuring machines, semiconductor manufacturing equipment, compact assembly machinery, and other industrial systems requiring dependable linear guidance with ultra-compact, low-profile dimensions and reliable long-term performance.
Reference: BMW30LG3V1
