Quick Code: BB-526500

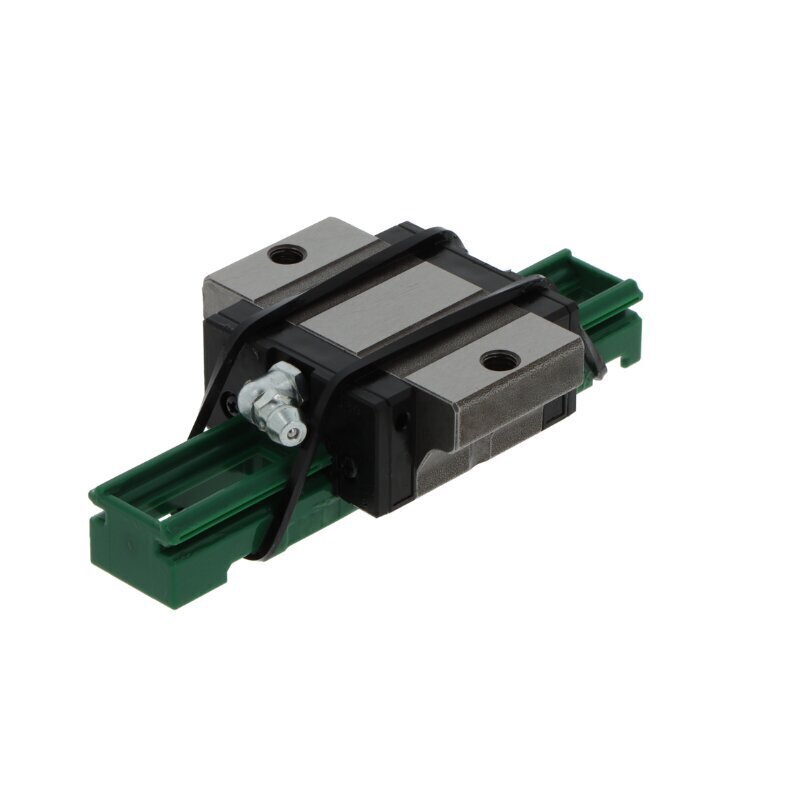

BMW30-J-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low and short design
Reference
BMW30JG3V1
Additional Reference:
10157111
Quick Order Code
BB-526500
Product Description
The BMW30-J-G3-V1 is a premium flange carriage from Schneeberger's 30 series, engineered for precision linear motion applications requiring reliable performance and compact design in demanding industrial environments.
Key Specifications
- Design: Flange carriage with low and short design
- Rolling Elements: Four-row ball configuration for enhanced load distribution and smooth operation
- Tolerance Class: G3 for precise linear guidance
- Preload: Light preload for smooth operation with minimal friction
- Material: Durable steel and plastic construction
- Operating Temperature Range: -40°C to +80°C
Features & Maintenance
- Sealing System: End seals, sealing strips, and inner seals provide comprehensive protection against contamination
- Lubrication: Relubrication capability via lubrication nipple for extended service life and optimal performance
- Configuration: Supplied without ball chain for maximum design flexibility and custom integration
Ideal Applications
The BMW30-J-G3-V1 is ideally suited for industrial automation, manufacturing equipment, precision machinery, and positioning systems where compact footprint, flange mounting capability, reliability, and smooth linear motion are essential requirements. Its robust construction and four-row ball design make it particularly valuable in high-precision applications demanding consistent performance and minimal maintenance.
Reference: BMW30JG3V1 | Brand: Schneeberger
