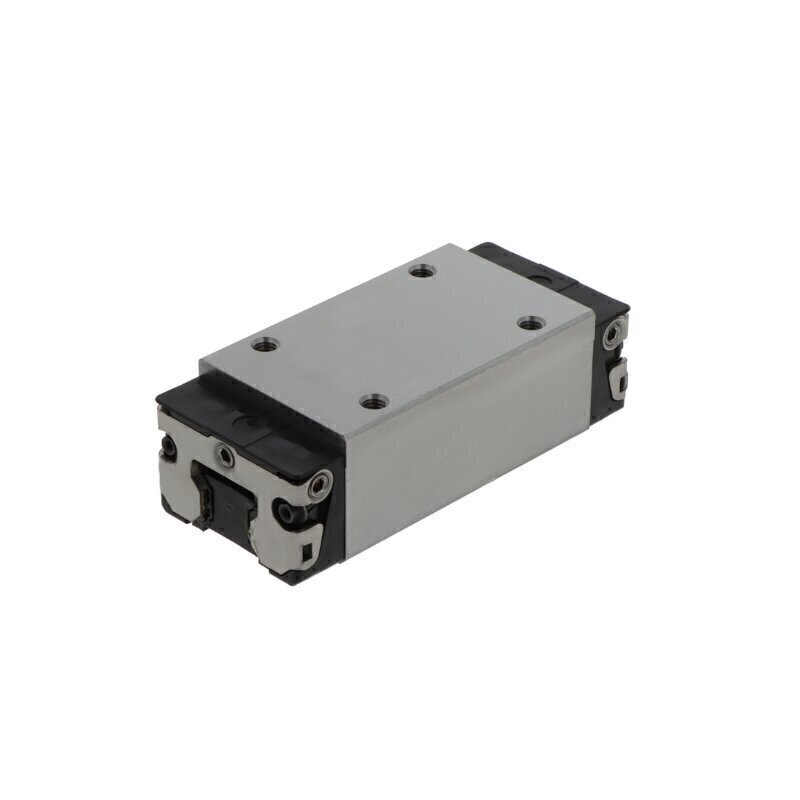

BMW30-D-G3-V1 Schneeberger Carriage
Also Try
Hiwin Carriages
Bosch Rexroth Carriages
THK Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High, narrow, short type
Reference
BMW30DG3V1
Additional Reference:
10143657
Quick Order Code
BB-522998
Product Description
BMW30-D-G3-V1 Schneeberger Carriage
The BMW30-D-G3-V1 is a precision block carriage from Schneeberger's 30 series, engineered for applications requiring smooth linear motion with reliable performance across demanding environments.
Key Features:
- Design: Block carriage - compact and efficient for space-constrained applications
- Rolling Elements: Four rows of ball bearings for enhanced load capacity and stability
- Tolerance Class: G3 - suitable for precision positioning and alignment requirements
- Preload: Light preload for smooth operation with minimal friction
- Profile Type: High, narrow, short configuration for versatile mounting options
- Sealing System: Comprehensive protection with end seals, sealing strips, and inner seals to prevent contamination
- Maintenance: Relubrication capability via integrated lubrication nipple for extended service life
- Materials: Durable steel and plastic construction for optimal performance and weight efficiency
- Operating Range: Temperature rated from -40°C to +80°C for use in extreme conditions
- Ball Chain: Supplied without ball chain for flexible customization
Ideal Applications:
This carriage is well-suited for precision machinery, automation equipment, material handling systems, and industrial applications requiring reliable linear guidance in varying temperature environments.
