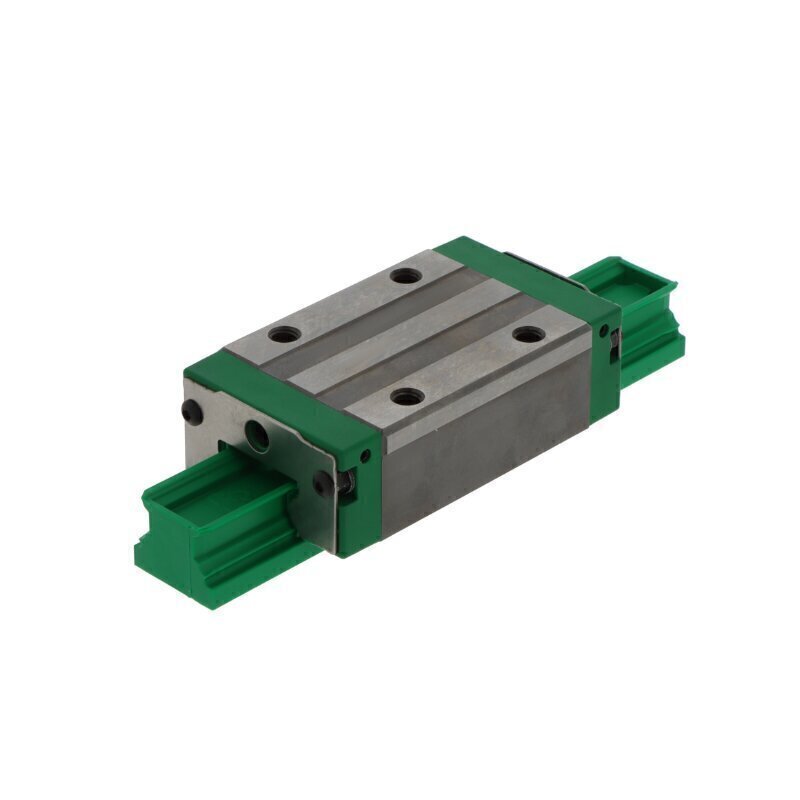

BMW25-L-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
BMW25LG3V1
Additional Reference:
10157105
Quick Order Code
BB-526495
Product Description
The BMW25-L-G3-V1 is a precision block carriage from Schneeberger's 25 series, engineered for high-accuracy linear motion applications in space-constrained environments. This carriage combines exceptional performance with a slimline and low design profile, making it ideal for compact installations without compromising reliability or precision.
Key Features & Specifications:
- Design: Slimline and low profile block carriage optimized for space-limited applications
- Rolling Elements: Four rows of precision balls for smooth, consistent linear motion
- Tolerance Class: G3 for high-precision positioning and repeatability requirements
- Preload: Light preload configuration to minimize friction while ensuring optimal load distribution
- Construction Materials: Durable steel and plastic components engineered for long-term performance and reliability
- Sealing System: Comprehensive protection featuring end seals, sealing strips, and inner seals to effectively prevent contamination ingress
- Lubrication: Relubrication capability via integrated lubrication nipple for extended maintenance intervals and service life
- Operating Temperature Range: -40°C to +80°C for versatile performance across diverse industrial environments
- Ball Chain: Supplied without ball chain for flexible system integration
Ideal Applications:
The BMW25-L-G3-V1 is well-suited for precision automation equipment, compact machine tools, semiconductor manufacturing, packaging machinery, test systems, and other industrial applications where reliable linear guidance, minimal height clearance, and high accuracy are critical requirements.
Reference: BMW25LG3V1 | Brand: Schneeberger
