Quick Code: BB-526491

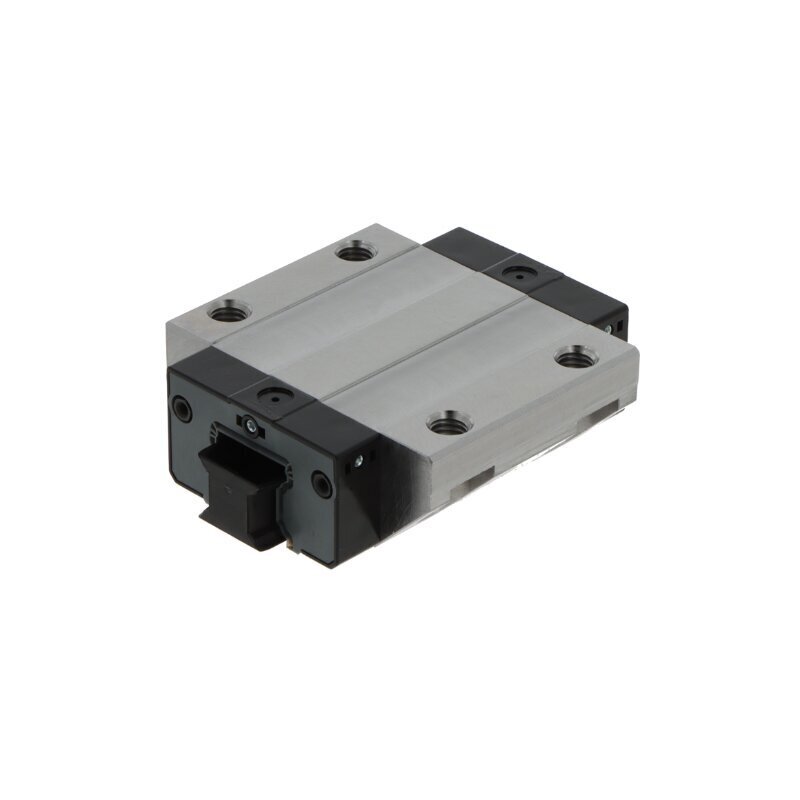

BMW25-H-G3-V1 Schneeberger Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
Schneeberger
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
25 series
Temperature range
-40 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
BMW25HG3V1
Additional Reference:
10157101
Quick Order Code
BB-526491
Product Description
BMW25-H-G3-V1 Schneeberger Carriage
The BMW25-H-G3-V1 is a compact flange carriage from Schneeberger's 25 series, engineered for precision linear motion applications requiring reliable performance in space-constrained environments. Featuring a low design configuration, this carriage delivers smooth operation and dependable accuracy across a wide range of industrial and commercial applications.
Key Features:
- Four-Row Ball Configuration: Four rows of precision ball elements provide excellent load distribution, smooth operation, and consistent performance under varying conditions
- Flange Carriage Design: Low design format optimized for compact installations and applications where vertical space is limited
- Light Preload: Balanced preload setting for smooth operation while maintaining precise positioning and minimizing friction losses
- Comprehensive Sealing: End seals, sealing strips, and inner seals provide robust protection against dust and contaminants, extending service life
- Relubrication Capability: Integrated lubrication nipple enables convenient maintenance and extended operational intervals
- Wide Temperature Range: Operates reliably from -40°C to +80°C, suitable for diverse climates and demanding industrial conditions
- G3 Tolerance Class: Delivers precision standards for applications requiring good accuracy and repeatable performance
Technical Specifications:
- Series: 25 series
- Brand: Schneeberger
- Reference: BMW25HG3V1
- Design Type: Flange carriage, low design
- Rolling Elements: Balls (four row)
- Material: Steel and plastic construction
- Ball Chain: Without ball chain
Applications:
The BMW25-H-G3-V1 is ideally suited for compact linear guidance applications including automation equipment, printing machinery, packaging systems, medical devices, and precision production equipment where space efficiency, smooth motion, and reliable accuracy are essential requirements.
