Buy Now
Product Specification
Brand
TuffBelt
External Length (Approx)
2073mm
Internal Length (Approx)
2023mm
Pitch Length (Approx)
2060mm
Top Width x Depth (Approx)
9.7mm x 8mm
Reference
SPZ2060
Quick Order Code
BB-35134
Product Description

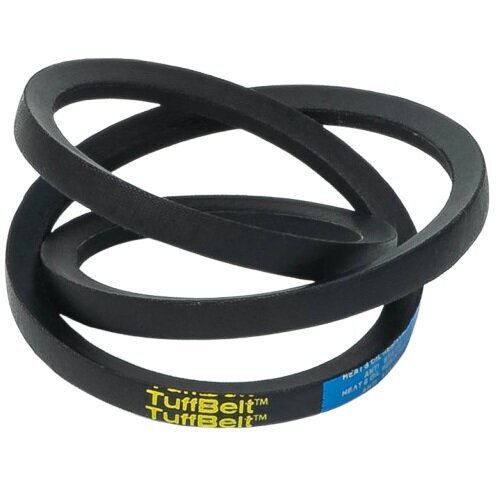

SPZ2060 Wedge Belt by TuffBelt
A robust and reliable power transmission solution, this TuffBelt SPZ section wedge belt is engineered to excel in demanding agricultural and industrial applications. Manufactured to precise specifications, this belt delivers consistent performance across a wide range of machinery including pumps, compressors, processing equipment, and agricultural implements.
With their narrow profile, TuffBelt wedge belts are engineered for installations where space is limited, yet high performance is essential. Their wedge-shaped cross section increases the contact area with the pulley, creating greater friction and allowing them to transmit significantly more power than traditional V belts. Despite their compact size, they deliver exceptionally high load carrying capacity, making them ideal for both demanding power transmission tasks and standard applications.
Key Features
