Transmissions V & Wedge Belts Wedge Belts SPZ Belts (9.7mm x 8mm)
Quick Code: BB-118441

SPZ1650 Dunlop Wedge Belt

Name: SPZ1650 Dunlop Wedge Belt
Brand: Dunlop
SKU: SPZ1650
Price: 10.10 GBP
Availability: InStock
Rating: 5.00 (2 reviews)

Help Articles

MEASURE A BELT
Fan Belt Calculator

Also Try

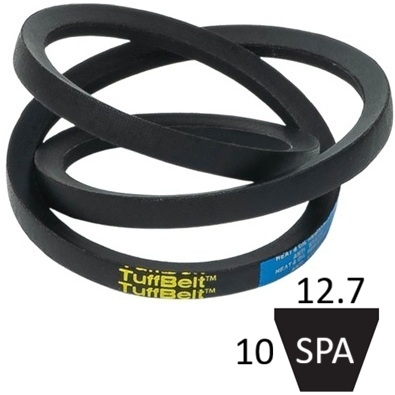

SPA Belts (12.7mm x 10mm)

A Belts (13mm x 8mm)

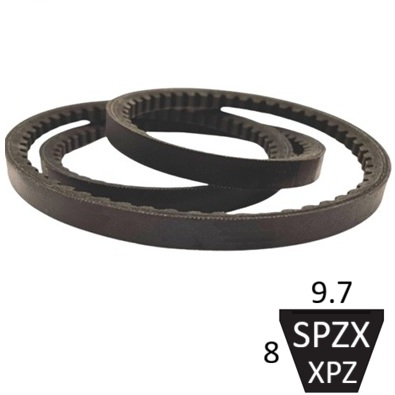

SPZX Belts (9.7mm x 8mm)

SPZ Section Cast Iron - Taper Lock

Taper Bushes

Buy Now

Qty:

Product Specification

Brand

Dunlop

External Length (Approx)

1663mm

Internal Length (Approx)

1613mm

Pitch Length (Approx)

1650mm

Top Width x Depth

9.7mm x 8mm

Reference

SPZ1650

Quick Order Code

BB-118441

Product Description

SPZ1650 Wedge Belt by Dunlop

The Dunlop wrapped wedge belt is a temperature and oil resistant universal drive belt with antistatic properties that has a deeper cross section than conventional v-belts, this increase in height ensures excellent grip and greater power ratings. They have a wide range of applications in both industrial machinery and agricultural equipment that may require high belt speeds.

Construction and Features

The tensile member consists of a specially treated higher strength polyester cord to transmit tensile forces and withstand shock loads.

The fabric jacket provides grip and protection against external agents and resistance to abrasion.

The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member.

Standards

Wrapped wedge belts conform to 1S04184, D1N7753 and BS37901 they meet 1S01813 for static conductivity and have an operating temperature range of -30 deg C - +60 deg C.

Dimensions

9.7mm top width x 8mm deep

SPZ section wedge belt

SPZ Pulleys To Suit

Product Reviews
