Quick Code: BB-530902

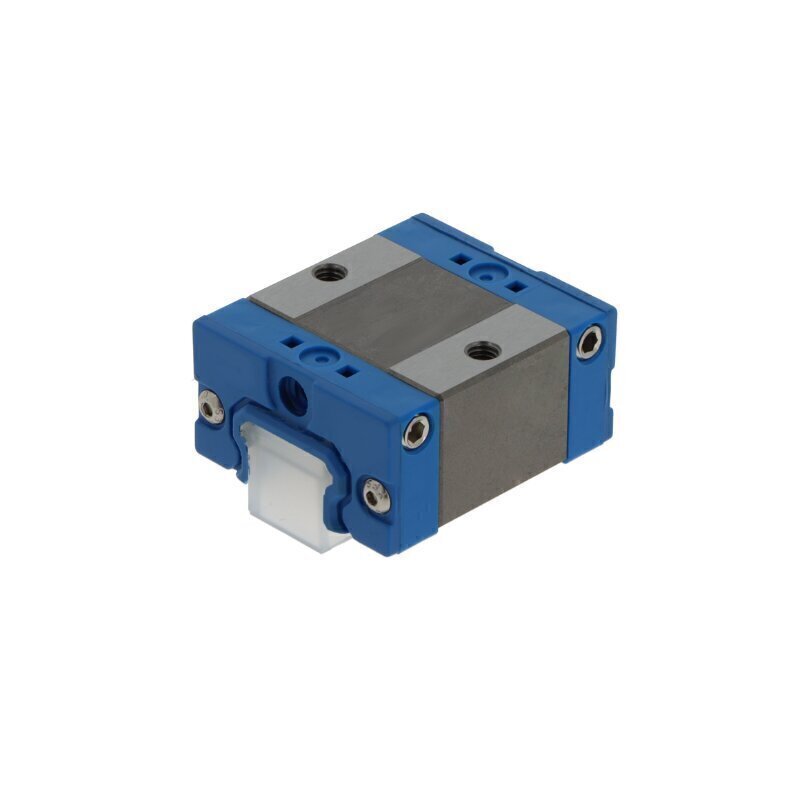

LGBXS15 BSSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low and short design
Reference
LGBXS15BSSSNZ1N
Additional Reference:
10188688
Quick Order Code
BB-530902
Product Description
The LGBXS15 BSSSNZ1-N is a high-quality linear carriage manufactured by SNR, designed for precise linear motion applications. This block-style carriage features a compact low and short design, making it ideal for applications where space is limited while still requiring reliable linear guidance.
Key Features
- Double Row Ball Configuration: Utilizes balls as rolling elements arranged in a double row for enhanced load capacity and stability
- Comprehensive Sealing System: Equipped with end seals, sealing strips, and inner seals for superior protection against contamination
- Easy Maintenance: Can be relubricated via the lubrication nipple for extended service life
- Light Preload: Factory-set light preload for smooth operation and optimal performance
- Operating Temperature: Suitable for environments ranging from -10°C to +100°C
- Normal Tolerance Class: Manufactured to standard precision specifications
Construction
- Materials: Steel and Plastic components
- Series: 15 series
- Design: Block carriage with low and short profile
- Without ball chain
Applications
This SNR carriage is suitable for various industrial automation applications including:
- CNC machinery and machine tools
- Packaging equipment
- Assembly automation systems
- Material handling equipment
- Precision positioning systems
Reference: LGBXS15BSSSNZ1N
Brand: SNR
