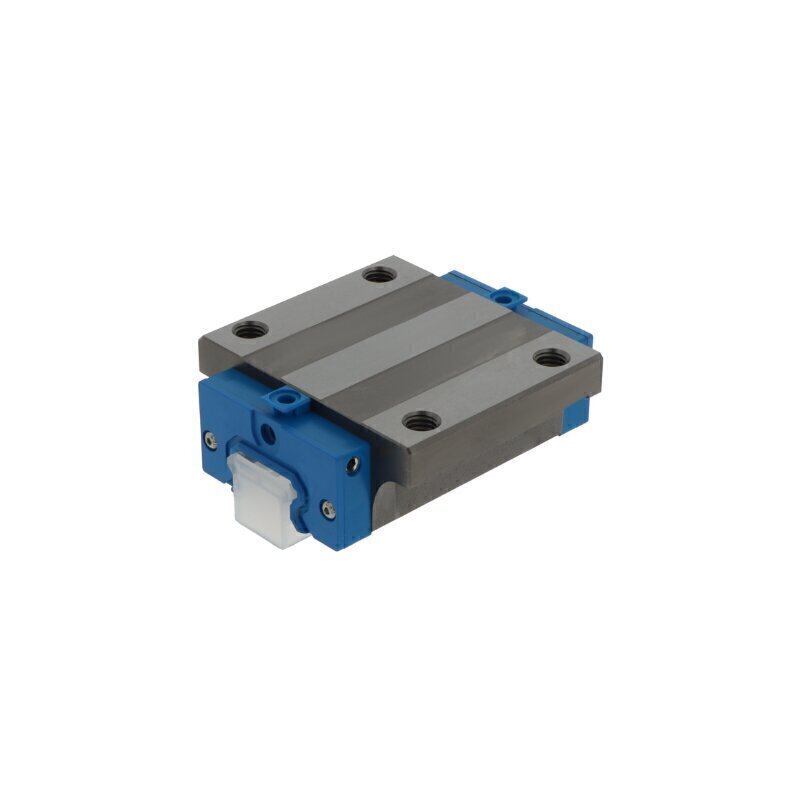

LGBXH20 FLSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Long design
Reference
LGBXH20FLSSNZ1N
Additional Reference:
10188693
Quick Order Code
BB-530905
Product Description
The LGBXH20 FLSSNZ1-N is a high-quality linear carriage manufactured by SNR, designed to deliver precise and reliable linear motion in a wide range of industrial applications. This flange carriage features a long design configuration, making it ideal for applications requiring extended support and enhanced load distribution.
Built from durable steel and plastic components, this carriage incorporates a double row ball bearing system that ensures smooth operation and superior load-carrying capacity. The light preload setting optimizes the balance between rigidity and smooth running performance.
Key Features:
- Design: Flange carriage with long design version
- Series: 20 series
- Rolling Elements: Balls arranged in double row configuration
- Material: Steel and Plastic construction
- Preload: Light preload for optimal performance
- Sealing: Comprehensive sealing system including end seals, sealing strips, and inner seals for contamination protection
- Lubrication: Can be relubricated via lubrication nipple for extended service life
- Ball Chain: Without ball chain
- Tolerance Class: Normal class
- Operating Temperature: -10 to +100°C
Typical Applications:
- CNC machinery and machine tools
- Automated assembly systems
- Packaging equipment
- Material handling systems
- Precision positioning applications
Reference: LGBXH20FLSSNZ1N
Brand: SNR
