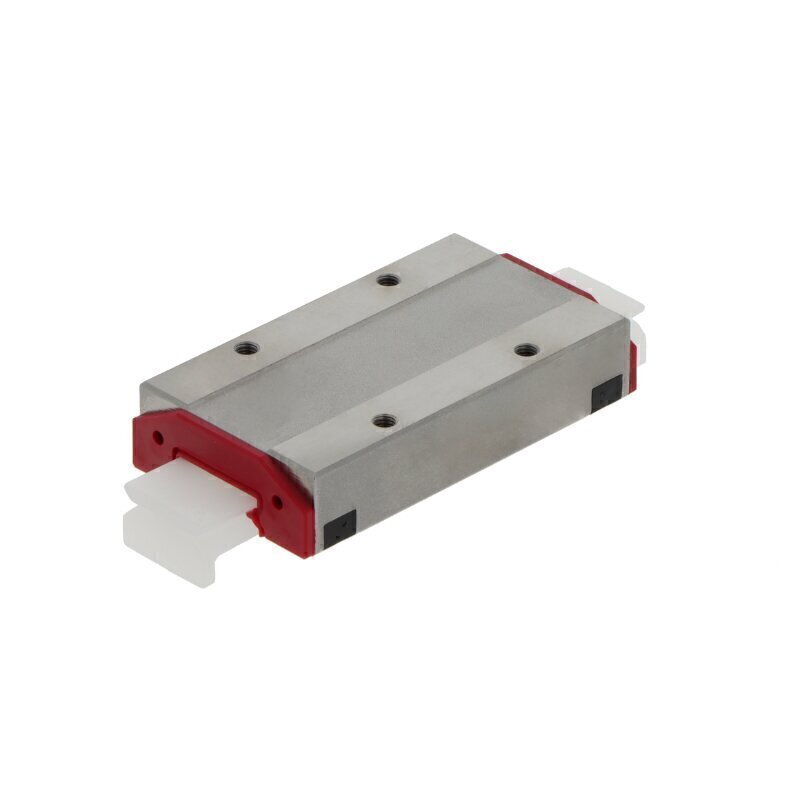

LGBXH20 BNSSNZ2-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Standard version
Reference
LGBXH20BNSSNZ2N
Additional Reference:
10194150
Quick Order Code
BB-531576
Product Description
The LGBXH20 BNSSNZ2-N is a high-quality linear carriage manufactured by SNR, designed for precise linear motion applications. This block-style carriage belongs to the 20 series and features a compact design suitable for applications where space efficiency is essential without compromising on performance.
Constructed from durable steel and plastic materials, this carriage incorporates ball-type rolling elements in a double row arrangement, providing excellent load distribution and smooth, reliable operation. The light preload setting ensures minimal friction while maintaining precise guidance throughout the travel range.
Key Features:
- Design: Block carriage configuration
- Series: 20 series
- Rolling Elements: Ball-type with double row arrangement
- Version: Standard version
- Preload: Light preload for smooth operation
- Tolerance Class: Normal Class
- Operating Temperature: -10°C to +100°C
- Materials: Steel and Plastic construction
- Ball Chain: Without ball chain design
Sealing & Maintenance:
- Comprehensive sealing system including end seals, sealing strips, and inner seals for superior contamination protection
- Can be relubricated via the lubrication nipple for extended service life and reduced maintenance costs
Typical Applications:
- CNC machinery and machine tools
- Industrial automation equipment
- Packaging machinery
- Material handling systems
- Precision positioning equipment
- Small to medium-sized linear motion assemblies
Reference: LGBXH20BNSSNZ2N
Brand: SNR
