Quick Code: BB-530923

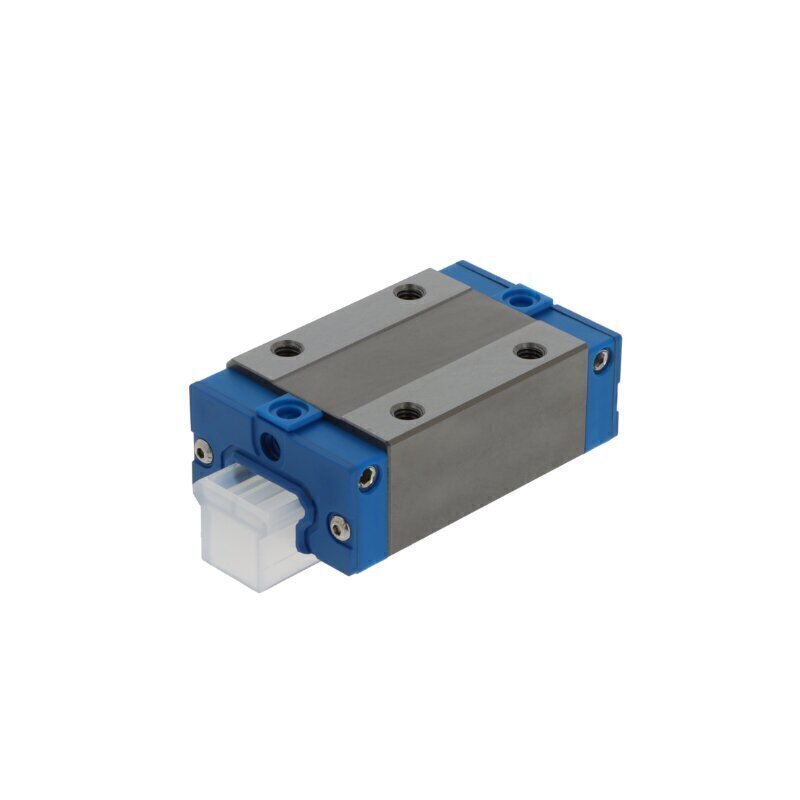

LGBCS45 BNSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low design
Reference
LGBCS45BNSSNZ1N
Additional Reference:
10188732
Quick Order Code
BB-530923
Product Description
The LGBCS45 BNSSNZ1-N is a premium linear carriage manufactured by SNR, engineered for demanding linear motion applications requiring precision and reliability. This block-style carriage from the 45 series features a low profile design, making it suitable for machinery where vertical space is limited while still requiring substantial load-bearing capacity.
Constructed from durable steel and plastic materials, this carriage incorporates ball-type rolling elements arranged in a double row configuration, providing excellent load distribution and stability during operation. The light preload ensures smooth, accurate movement while minimizing friction for optimal performance in positioning applications.
Key Features:
- Design: Block carriage with low profile
- Series: 45 series (larger size for higher load capacity)
- Rolling Elements: Balls arranged in double row configuration
- Ball Chain: Equipped with ball chain for consistent ball circulation and quiet operation
- Preload: Light preload for smooth, low-friction operation
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals to guard against contaminants
- Lubrication: Can be relubricated via the lubrication nipple for extended service life and reduced maintenance downtime
- Tolerance Class: Normal class
- Operating Temperature: -10°C to +100°C
- Material: Steel and Plastic construction
Typical Applications:
- Heavy-duty automated machinery and equipment
- CNC machines and machine tools
- Industrial packaging equipment
- Material handling and conveyor systems
- Assembly line automation
- Precision positioning systems
- Robotics and pick-and-place systems
Reference: LGBCS45BNSSNZ1N
Brand: SNR
