Quick Code: BB-530921

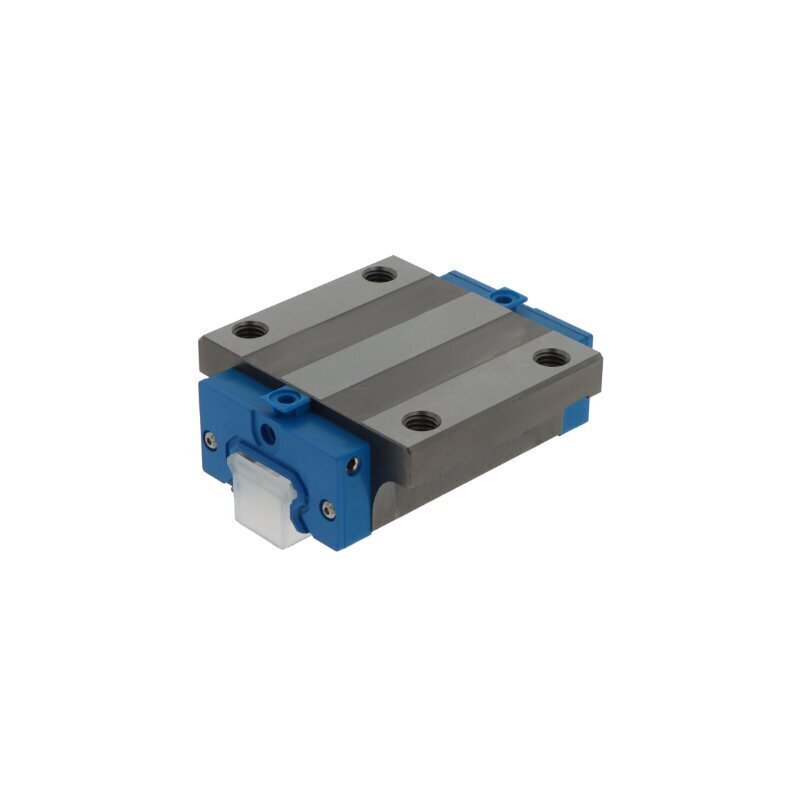

LGBCH45 FLSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Long design
Reference
LGBCH45FLSSNZ1N
Additional Reference:
10188730
Quick Order Code
BB-530921
Product Description
The LGBCH45 FLSSNZ1-N is a premium linear carriage manufactured by SNR, engineered for demanding linear motion applications requiring high load capacity and precision. This flange-type carriage from the 45 series features a long design, providing extended contact length for improved load distribution and stability in heavy-duty industrial environments.
Constructed with a robust combination of steel and plastic materials, this carriage delivers exceptional durability and reliable performance. The double-row ball configuration ensures superior load-carrying capability and enhanced rigidity, making it suitable for applications where precision and strength are paramount.
Key Features:
- Design: Flange carriage with long profile
- Series: 45 series for heavy-duty applications
- Rolling Elements: Balls arranged in double row configuration
- Ball Chain: Equipped with ball chain for smooth and reliable ball recirculation
- Preload: Light preload for reduced friction and smooth operation
- Sealing: Comprehensive sealing system including end seals, sealing strips, and inner seals for maximum protection against contaminants
- Lubrication: Can be relubricated via the lubrication nipple for extended service life and reduced maintenance
- Tolerance Class: Normal class precision
- Operating Temperature: -10°C to +100°C
- Material: Steel and Plastic construction
Typical Applications:
- Heavy-duty CNC machinery and machine tools
- Large-scale automated assembly systems
- Industrial packaging equipment
- Material handling and conveyor systems
- Precision positioning applications requiring high load capacity
- Robotics and automation systems
- Woodworking and metalworking machinery
Reference: LGBCH45FLSSNZ1N
Brand: SNR
