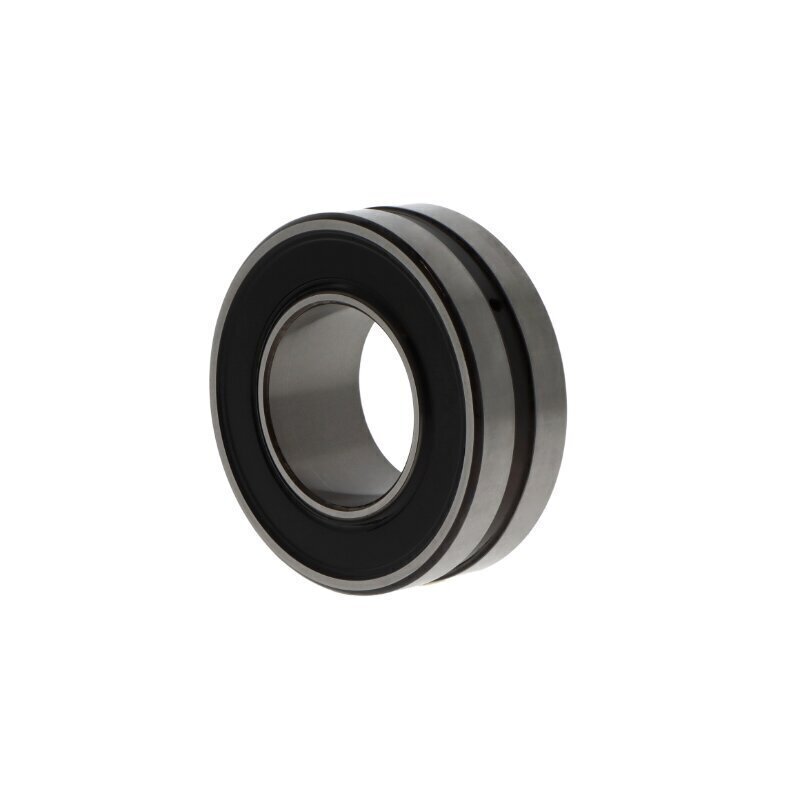

BS2-2220-2RS5K/VT143 SKF Spherical Roller Bearing 100mm x 180mm x 55mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
100mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
180mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
55mm
Reference
BS2-2220-2RS5K/VT143, BS2-2220-2RS5KVT143
Additional Reference:
10150254
Brand
SKF
Quick Order Code
BB-524857
Product Description
This specialized SKF spherical roller bearing combines robust design with superior sealing and lubrication features, making it ideal for demanding industrial applications where reliability and protection against contamination are crucial.
Key Features
- Pre-filled with 25-35% SKF LGEP2 extreme pressure grease for enhanced performance
- Contact seals on both sides for maximum protection against contaminants
- 1:12 tapered bore design for secure shaft mounting
- Sheet steel cage construction for durability
- Lubrication groove and holes in outer ring for optimal lubricant distribution
- Operating temperature range of -30°C to +80°C
Technical Specifications
- Inside Diameter: 100mm
- Outside Diameter: 180mm
- Width: 55mm
- Material: Standard bearing steel
- Clearance: Standard
- Tolerance Class: P0/PN2 / ABEC 1
Typical Applications
- Heavy-duty industrial equipment exposed to contamination
- Mining and construction machinery
- Material handling systems
- Agricultural equipment
- Processing machinery requiring sealed bearing solutions
The BS2-2220-2RS5K/VT143 is particularly suited for applications where traditional open bearings might be compromised by environmental contaminants. Its sealed design and pre-lubrication make it an excellent choice for locations with limited maintenance access or harsh operating conditions.
Reference Numbers: BS2-2220-2RS5K/VT143, BS2-2220-2RS5KVT143
