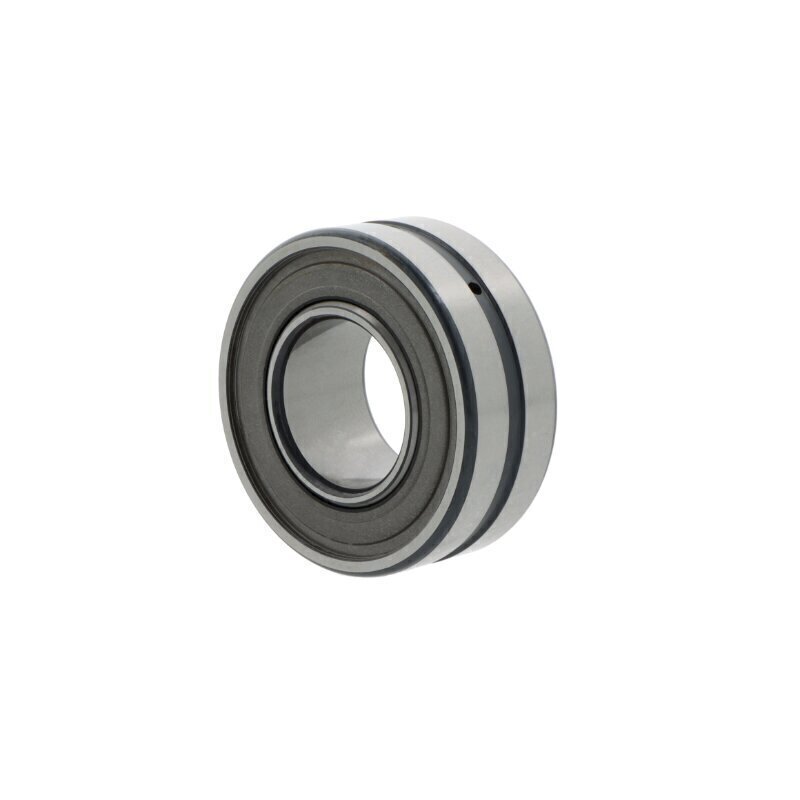

BS2-2219-2RS/VT143 SKF Spherical Roller Bearing 95mm x 170mm x 51mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
95mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
170mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
51mm
Reference
BS2-2219-2RS/VT143, BS2-2219-2RSVT143
Additional Reference:
10150595
Brand
SKF
Quick Order Code
BB-524987
Product Description
A high-performance sealed spherical roller bearing designed for demanding industrial applications where protection against contamination and optimal lubrication are essential. Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling), this bearing offers exceptional reliability in challenging environments.
Key Features
- Contact seals on both sides for superior contamination protection
- Pre-lubricated with high-pressure lithium soap grease
- Self-aligning capability to compensate for shaft misalignment
- Lubrication groove with lubrication holes on outer ring
- Sheet steel cage construction for durability
- Standard clearance specification
Technical Specifications
- Inside Diameter: 95mm
- Outside Diameter: 170mm
- Width: 51mm
- Bore Type: Cylindrical
- Operating Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 / ABEC 1
- Material: Standard bearing steel
Common Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dirty environments
- Industrial fans and blowers
- Washing and cleaning equipment
Particularly suited for applications where contamination protection is crucial and regular relubrication is difficult or impractical. The sealed design and pre-lubrication make this bearing ideal for hard-to-reach locations or environments where maintaining clean lubricant conditions is challenging.
Reference Numbers: BS2-2219-2RS/VT143, BS2-2219-2RSVT143
