Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-523593

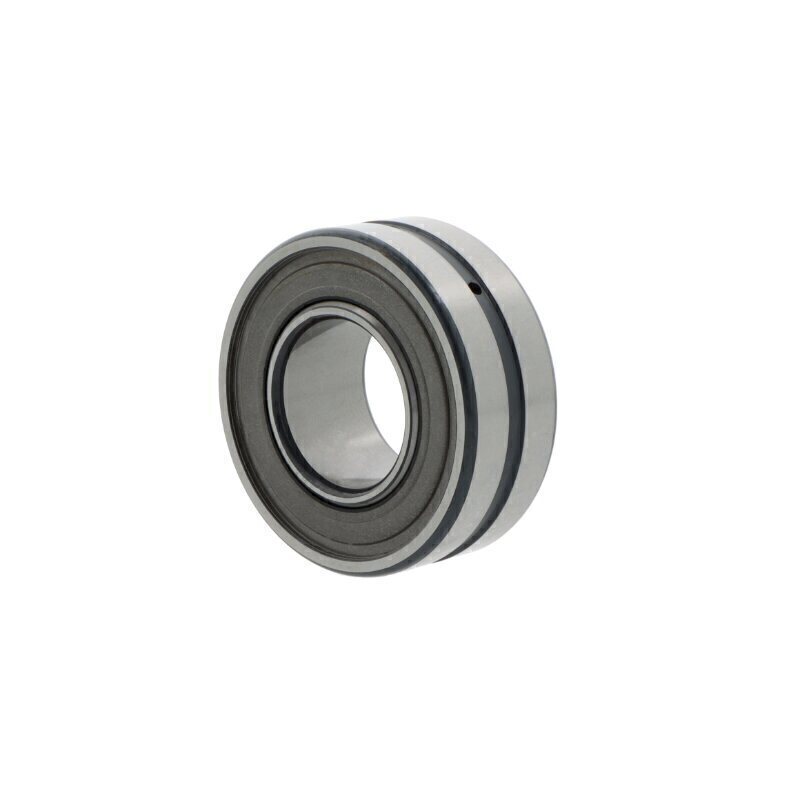

BS2-2218-2RS/VT143 SKF Spherical Roller Bearing 90mm x 160mm x 48mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
90mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
160mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
48mm
Reference
BS2-2218-2RS/VT143, BS2-2218-2RSVT143
Additional Reference:
10146117
Brand
SKF
Quick Order Code
BB-523593
Product Description
This premium SKF spherical roller bearing combines robust design with advanced sealing technology, making it ideal for demanding industrial applications where protection against contamination is crucial. Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling), this bearing offers exceptional performance in challenging environments.
Technical Specifications
- Inside Diameter: 90mm
- Outside Diameter: 160mm
- Width: 48mm
- Bore Type: Cylindrical
- Clearance: Standard
- Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 / ABEC 1
- Material: Standard bearing steel
Design Features
- Contact seals on both sides for superior protection against contaminants
- Sheet steel cage construction for enhanced durability
- Lubrication groove with lubrication holes on outer ring for optimal lubricant distribution
- Pre-filled with high-performance LGEP2 extreme pressure lithium soap grease
- Self-aligning capability to compensate for shaft misalignment
Typical Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Industrial fans and blowers
- Mining and construction equipment
This bearing is particularly suitable for applications requiring protection against contamination while maintaining the self-aligning benefits of spherical roller bearings. The sealed design and pre-lubrication make it an excellent choice for locations where regular maintenance access is difficult or where clean operation is essential.
Alternative References: BS2-2218-2RS/VT143, BS2-2218-2RSVT143
