Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-524825

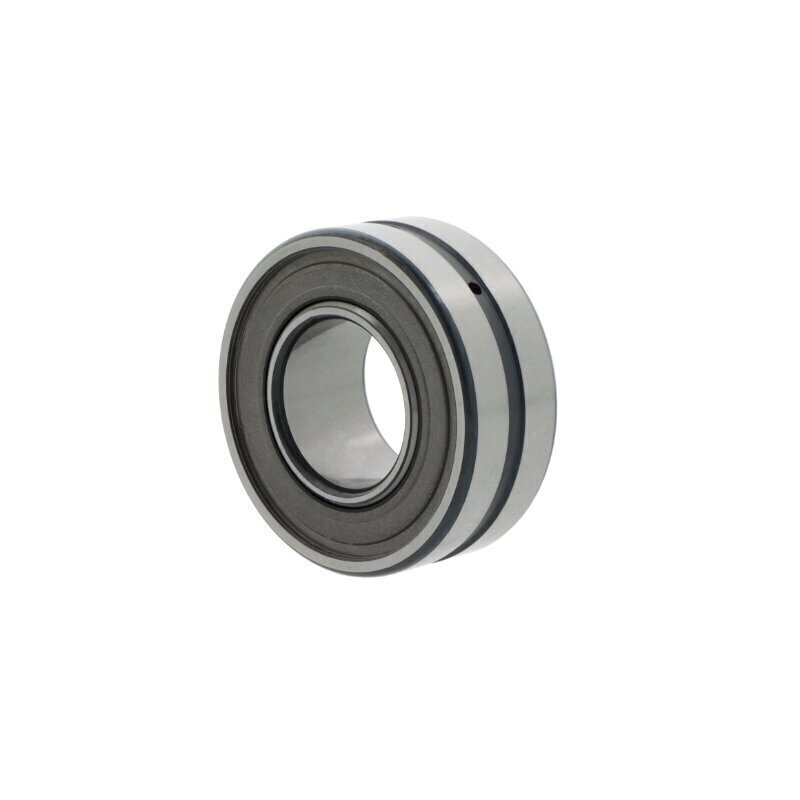

BS2-2217-2RS/VT143 SKF Spherical Roller Bearing 85mm x 150mm x 44mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
3M Timing Belts (3mm Pitch)
Buy Now
Qty:
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
85mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
150mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
44mm
Reference
BS2-2217-2RS/VT143, BS2-2217-2RSVT143
Additional Reference:
10150160
Brand
SKF
Quick Order Code
BB-524825
Product Description
This high-performance SKF spherical roller bearing combines robust design with enhanced sealing capabilities, making it ideal for demanding industrial applications where protection against contamination is crucial.
Key Features:
- Double-sealed design (RS on both sides) for superior protection against contaminants
- Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling)
- Self-aligning capability to compensate for shaft misalignment
- Sheet steel cage construction for improved durability
- Lubrication groove and holes on outer ring for optimal lubricant distribution
Technical Specifications:
- Inside Diameter: 85mm
- Outside Diameter: 150mm
- Width: 44mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Clearance: Standard
- Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 (ABEC 1)
Typical Applications:
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Industrial fans and blowers
- Equipment exposed to moisture or contamination
The BS2-2217-2RS/VT143 is specifically designed for applications requiring reliable performance in challenging environments. Its sealed design and pre-filled extreme pressure grease make it particularly suitable for locations where regular maintenance access is limited or where protection against environmental contaminants is essential.
Additional References:
- Alternative Part Numbers: BS2-2217-2RS/VT143, BS2-2217-2RSVT143
- Brand: SKF
