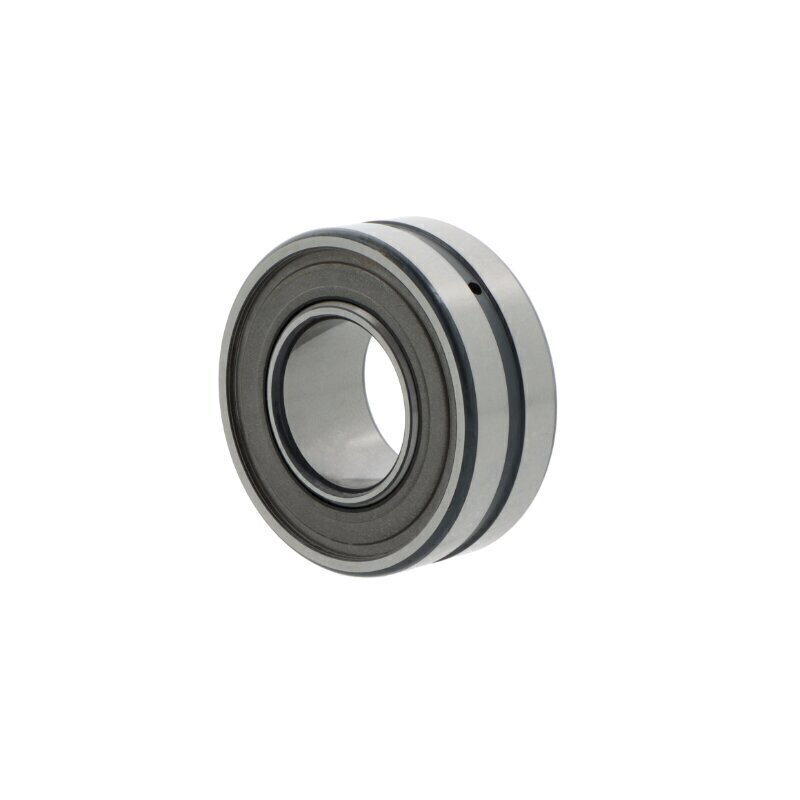

BS2-2216-2RS/VT143 SKF Spherical Roller Bearing 80mm x 140mm x 40mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
80mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
140mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
40mm
Reference
BS2-2216-2RS/VT143, BS2-2216-2RSVT143
Additional Reference:
10140897
Brand
SKF
Quick Order Code
BB-522097
Product Description
This high-performance SKF spherical roller bearing features sealed design and specialized grease filling, making it ideal for demanding applications where protection against contaminants is crucial. Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling), this bearing offers exceptional performance and reliability in challenging environments.
Key Features
- Contact seals on both sides for superior protection against contamination
- Pre-filled with SKF LGEP2 extreme pressure grease
- Sheet steel cage design for optimal strength and durability
- Lubrication groove with holes in outer ring for improved lubricant distribution
- Self-aligning capability to compensate for shaft misalignment
- Cylindrical bore for standard mounting applications
Technical Specifications
- Bore Diameter: 80mm
- Outside Diameter: 140mm
- Width: 40mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Operating Temperature Range: -30°C to +80°C
- Clearance: Standard
- Tolerance Class: P0/PN2 / ABEC 1
- Reference Numbers: BS2-2216-2RS/VT143, BS2-2216-2RSVT143
Common Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems
- Industrial fans and blowers
- General industrial machinery requiring sealed bearings
This sealed spherical roller bearing is particularly well-suited for applications where contamination protection is essential while maintaining the ability to handle misalignment. The pre-filled extreme pressure grease makes it an excellent choice for heavy-duty applications operating under challenging conditions.
