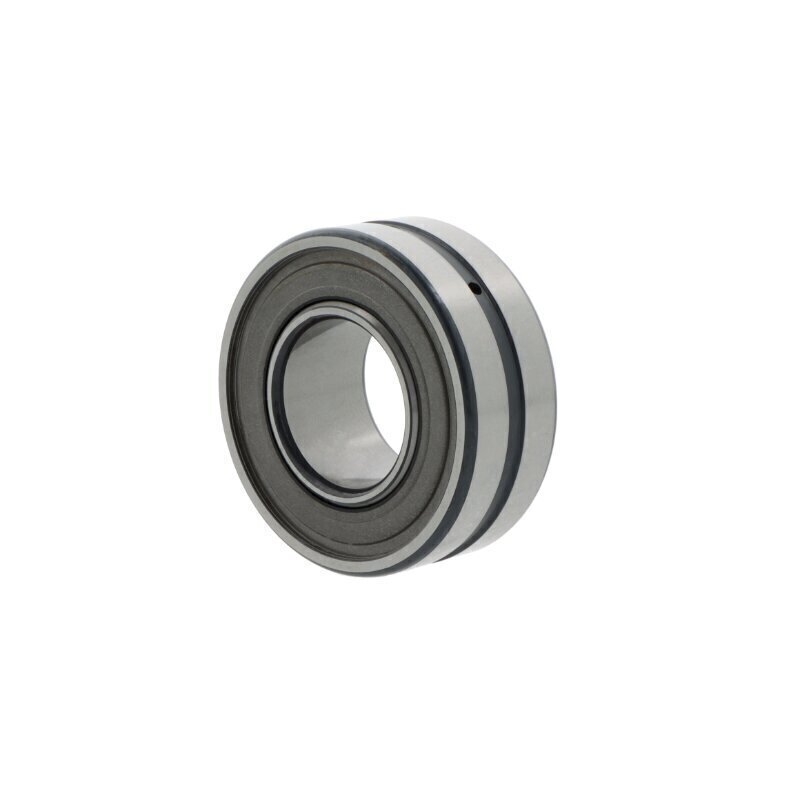

BS2-2215-2RS/VT143 SKF Spherical Roller Bearing 75mm x 130mm x 38mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
75mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
130mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
38mm
Reference
BS2-2215-2RS/VT143, BS2-2215-2RSVT143
Additional Reference:
10145563
Brand
SKF
Quick Order Code
BB-523476
Product Description
This specialized SKF spherical roller bearing combines robust design with superior sealing for demanding industrial applications. Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filled), this bearing offers exceptional performance and protection in challenging environments where conventional bearings might fail.
Key Features
- Double-sealed design (RS on both sides) for maximum contamination protection
- Pre-filled with high-pressure lithium soap grease for enhanced performance
- Self-aligning capability compensates for shaft misalignment and deflection
- Lubrication groove with distribution holes in outer ring for optimal lubrication
- Sheet steel cage construction for durability and reliability
- Operating temperature range: -30°C to +80°C
Technical Specifications
- Bore Diameter: 75mm
- Outside Diameter: 130mm
- Width: 38mm
- Bore Type: Cylindrical
- Clearance: Standard
- Tolerance Class: P0/PN2 / ABEC 1
- Material: Standard bearing steel
- Reference Numbers: BS2-2215-2RS/VT143, BS2-2215-2RSVT143
Common Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Water treatment equipment
- Industrial fans and blowers
This bearing is particularly suited for applications where protection against contamination is crucial and where regular relubrication may be difficult or impractical. The combination of contact seals and pre-filled extreme pressure grease makes it ideal for harsh operating conditions while maintaining reliable performance.
