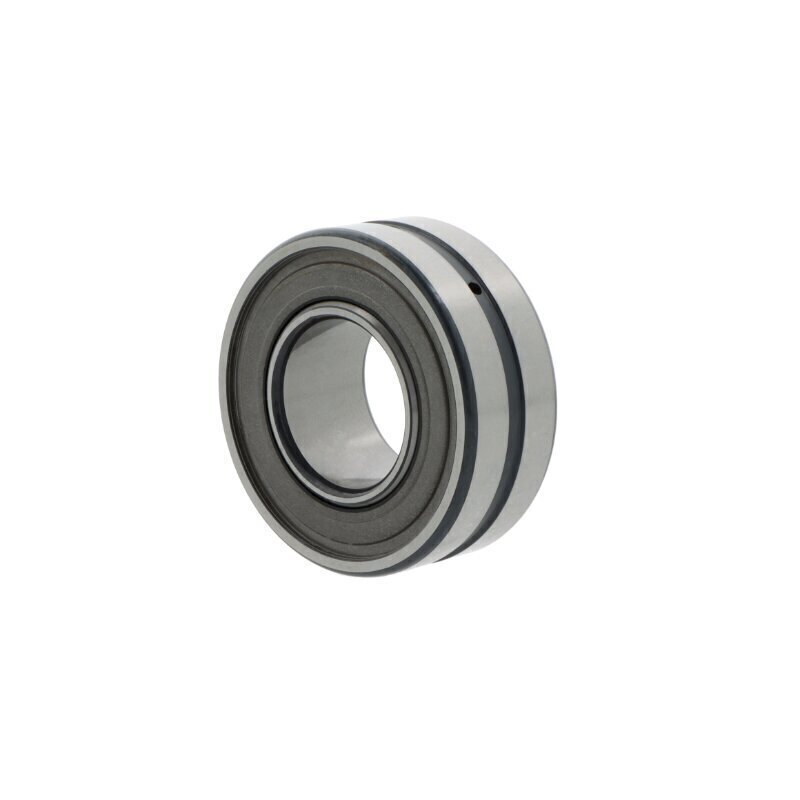

BS2-2214-2RS/VT143 SKF Spherical Roller Bearing 70mm x 125mm x 38mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
70mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
125mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
38mm
Reference
BS2-2214-2RS/VT143, BS2-2214-2RSVT143
Additional Reference:
10143805
Brand
SKF
Quick Order Code
BB-523058
Product Description
This premium SKF spherical roller bearing is engineered with dual contact seals and pre-filled with extreme pressure LGEP2 grease, making it ideal for demanding applications where protection against contamination is crucial. The self-aligning design accommodates shaft misalignment while maintaining optimal performance under heavy radial and axial loads.
Key Features and Benefits:
- Pre-filled with 25-35% SKF LGEP2 high-pressure lithium soap grease
- Contact seals on both sides for superior contamination protection
- Sheet steel cage design for enhanced durability
- Lubrication groove with distribution holes on outer ring
- Self-aligning capability to compensate for misalignment
Technical Specifications:
- Inside Diameter: 70mm
- Outside Diameter: 125mm
- Width: 38mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Operating Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 / ABEC 1
- Clearance: Standard
Common Applications:
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Industrial fans and blowers
- Packaging machinery
This sealed bearing is particularly suited for applications in contaminated environments where regular relubrication is difficult or undesirable. The combination of contact seals and pre-filled extreme pressure grease makes it an excellent choice for reliable, low-maintenance operation.
References: BS2-2214-2RS/VT143, BS2-2214-2RSVT143
