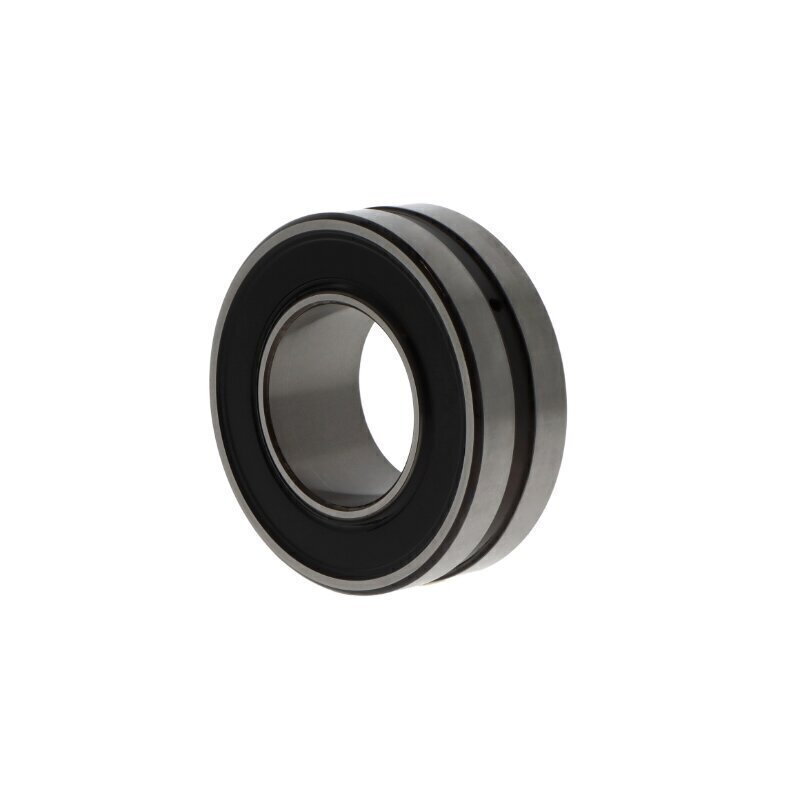

BS2-2213-2RSK/VT143 SKF Spherical Roller Bearing 65mm x 120mm x 38mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
65mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
120mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
38mm
Reference
BS2-2213-2RSK/VT143, BS2-2213-2RSKVT143
Additional Reference:
10146236
Brand
SKF
Quick Order Code
BB-523614
Product Description
This premium SKF Spherical Roller Bearing is engineered for exceptional performance in demanding industrial environments, featuring advanced sealing and lubrication characteristics for enhanced reliability and longevity.
Key Features:
- Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling)
- Contact seals on both sides for superior contamination protection
- Self-aligning capability to handle shaft misalignment
- Tapered bore design (1:12 ratio) for secure mounting
- Lubrication groove with holes on outer ring for optimal grease distribution
- Sheet steel cage construction for durability
Technical Specifications:
- Inside Diameter: 65mm
- Outside Diameter: 120mm
- Width: 38mm
- Temperature Operating Range: -30°C to +80°C
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Clearance: Standard
- Reference Numbers: BS2-2213-2RSK/VT143, BS2-2213-2RSKVT143
Ideal Applications:
- Industrial machinery operating in contaminated environments
- Equipment exposed to moisture or harsh conditions
- Applications requiring reliable operation under heavy loads
- Mining and construction equipment
- Material handling systems
- Processing and manufacturing machinery
This bearing's combination of sealed design and pre-lubrication with extreme pressure grease makes it particularly suitable for applications where maintenance access is limited or where extended service intervals are desired. The tapered bore configuration provides secure mounting options, while the self-aligning capability ensures reliable operation even under conditions of shaft misalignment.
