Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-523919

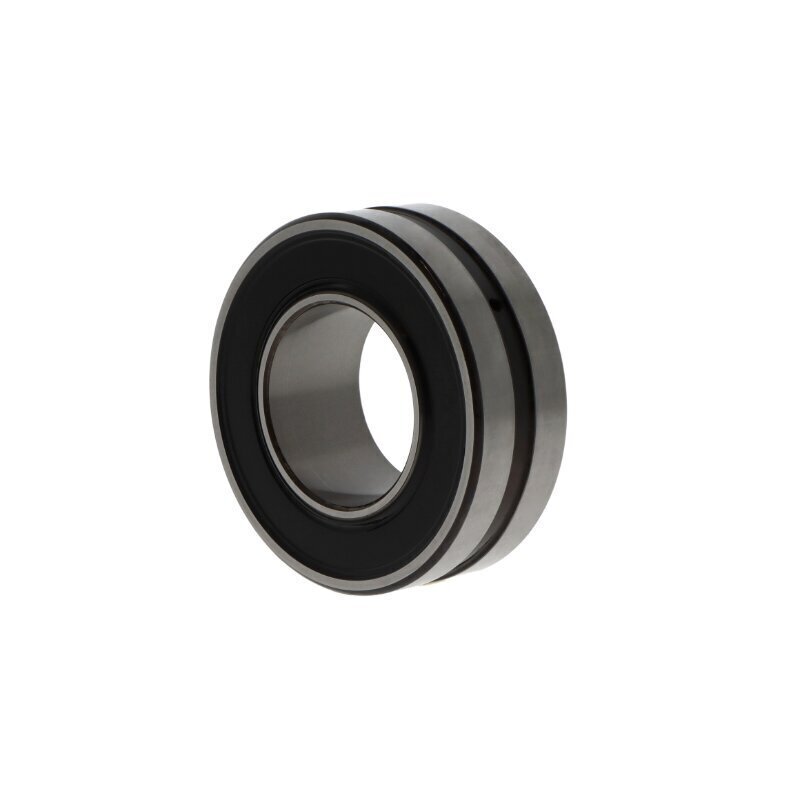

BS2-2212-2RSK/VT143 SKF Spherical Roller Bearing 60mm x 110mm x 34mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
60mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
110mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
34mm
Reference
BS2-2212-2RSK/VT143, BS2-2212-2RSKVT143
Additional Reference:
10147294
Brand
SKF
Quick Order Code
BB-523919
Product Description
This premium SKF spherical roller bearing is specifically engineered with sealed construction and special high-pressure grease filling, making it ideal for demanding applications where protection against contamination and optimal lubrication are crucial. The self-aligning design allows for excellent performance even under misaligned conditions.
Key Features
- Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling)
- Contact seals on both sides for superior contamination protection
- Sheet steel cage design for reliable roller guidance
- Lubrication groove and holes on outer ring for optimal lubricant distribution
- Tapered bore (1:12) for secure mounting and dismounting
- Operating temperature range of -30°C to +80°C
Technical Specifications
- Inside Diameter: 60mm
- Outside Diameter: 110mm
- Width: 34mm
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 (ABEC 1)
- Clearance: Standard
Ideal Applications
- Material handling equipment
- Agricultural machinery
- Conveyor systems
- Industrial fans and blowers
- Construction equipment
- Applications requiring protection against dust and moisture
This bearing is particularly suited for applications where reliable operation in contaminated environments is essential, with its sealed design and special grease filling providing extended service life under challenging conditions.
Reference Numbers: BS2-2212-2RSK/VT143, BS2-2212-2RSKVT143
Key Features
