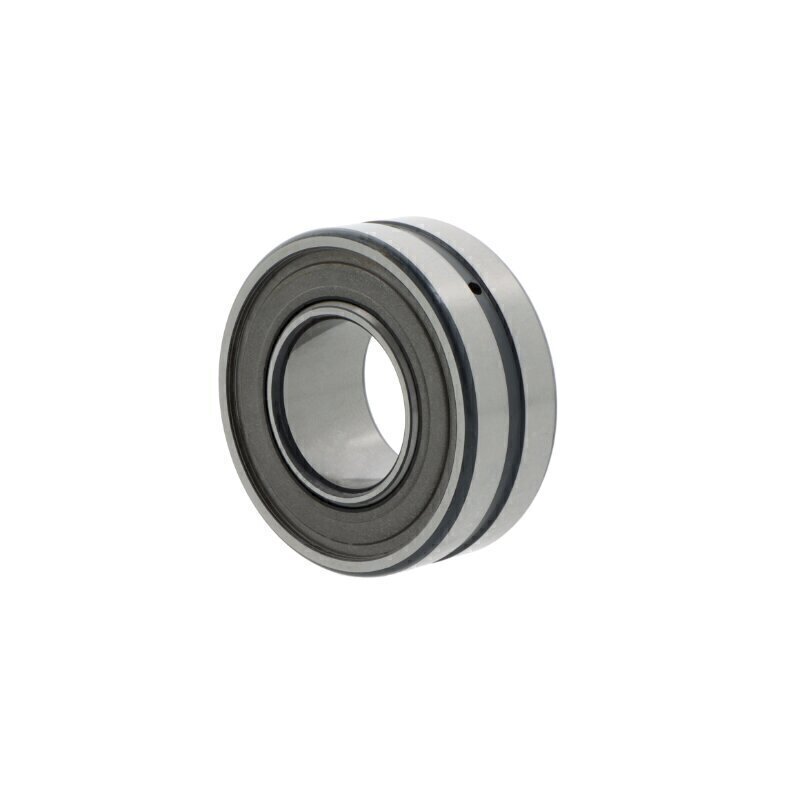

BS2-2211-2RS/VT143 SKF Spherical Roller Bearing 55mm x 100mm x 31mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
55mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
100mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
31mm
Reference
BS2-2211-2RS/VT143, BS2-2211-2RSVT143
Additional Reference:
10147596
Brand
SKF
Quick Order Code
BB-523977
Product Description
This premium SKF spherical roller bearing is specially engineered with sealed protection and extreme pressure grease for optimal performance in challenging industrial environments. Pre-filled with 25-35% SKF LGEP2 grease, this bearing combines superior load handling capabilities with enhanced protection against contamination.
Key Features
- Contact seals on both sides for maximum protection against contaminants
- Pre-filled with high-pressure lithium soap grease (LGEP2)
- Self-aligning design to compensate for shaft misalignment
- Lubrication groove and holes on outer ring for optimal lubricant distribution
- Sheet steel cage construction for durability
- Standard clearance specification
Technical Specifications
- Inside Diameter: 55mm
- Outside Diameter: 100mm
- Width: 31mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Operating Temperature Range: -30°C to +80°C
- Tolerance Class: P0/PN2 / ABEC 1
- Reference Numbers: BS2-2211-2RS/VT143, BS2-2211-2RSVT143
Typical Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Industrial fans and blowers
- Packaging machinery
This sealed spherical roller bearing is particularly suited for applications where protection against contamination is crucial while maintaining the ability to handle misalignment and combined loads. The pre-lubricated design with extreme pressure grease makes it ideal for locations where regular maintenance access is limited or challenging.
