Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-523514

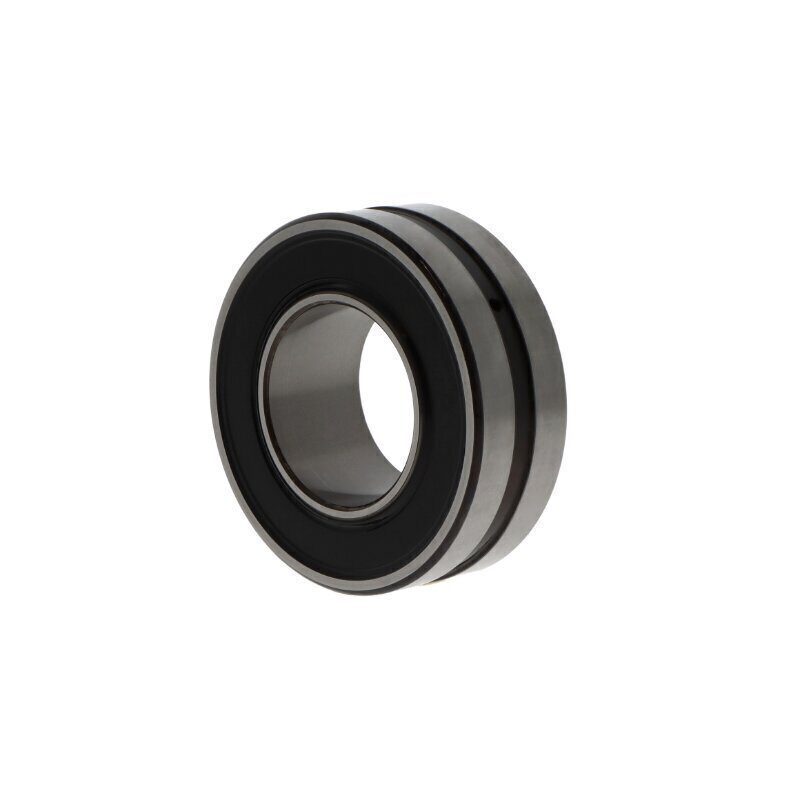

BS2-2210-2RSK/VT143 SKF Spherical Roller Bearing 50mm x 90mm x 28mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Metric Plain Oilite Bearings
Stainless Steel Angular Contact Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
50mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
90mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
28mm
Reference
BS2-2210-2RSK/VT143, BS2-2210-2RSKVT143
Additional Reference:
10145780
Brand
SKF
Quick Order Code
BB-523514
Product Description
This advanced SKF spherical roller bearing combines robust self-aligning capabilities with specialized sealing and lubrication features, making it ideal for demanding industrial applications where protection against contamination is crucial.
Key Features
- Pre-filled with 25-35% SKF LGEP2 extreme pressure grease for enhanced performance
- Contact seals on both sides provide superior protection against contaminants
- Self-aligning design compensates for shaft misalignment
- Tapered bore (1:12) for secure mounting using adapter sleeves
- Lubrication groove and holes in outer ring ensure optimal lubricant distribution
- Sheet steel cage design for improved strength and guidance
Technical Specifications
- Inside Diameter: 50mm
- Outside Diameter: 90mm
- Width: 28mm
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -30°C to +80°C
- Material: Standard bearing steel
Typical Applications
- Food processing equipment
- Material handling systems
- Agricultural machinery
- Conveyor systems in dusty environments
- Processing equipment exposed to moisture
- General industrial machinery requiring sealed bearing solutions
This bearing is particularly suited for applications where protection against contamination is essential while maintaining the advantages of spherical roller bearing design. The combination of contact seals and pre-filled extreme pressure grease makes it an excellent choice for challenging environments where reliability and minimal maintenance are required.
Reference Numbers: BS2-2210-2RSK/VT143, BS2-2210-2RSKVT143
