Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-519616

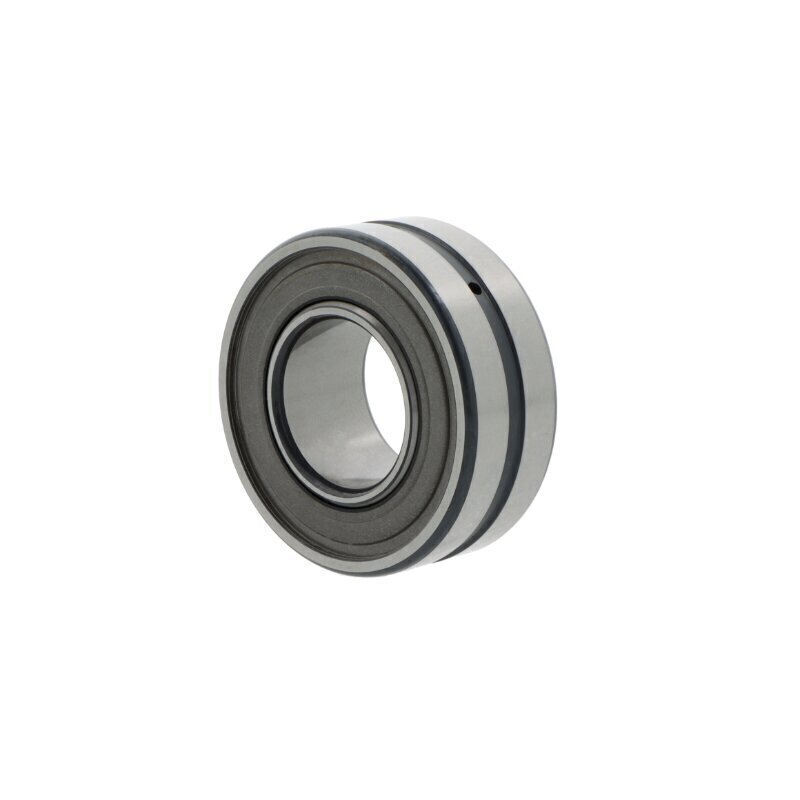

BS2-2208-2RS/VT143 SKF Spherical Roller Bearing 40mm x 80mm x 28mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
40mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
80mm
Seal
Contact seals on both sides
Temperature range
-30 to +80 Deg C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Special grease (high pressure lithium soap grease)
Width
28mm
Reference
BS2-2208-2RS/VT143, BS2-2208-2RSVT143
Additional Reference:
10134368
Brand
SKF
Quick Order Code
BB-519616
Product Description
This premium SKF Spherical Roller Bearing is specifically engineered with advanced sealing and lubrication features, making it ideal for demanding industrial applications where protection against contamination is crucial. The BS2-2208-2RS/VT143 model combines SKF's renowned self-aligning capabilities with enhanced sealing performance.
Technical Specifications:
- Inside Diameter: 40mm
- Outside Diameter: 80mm
- Width: 28mm
- Bore Type: Cylindrical
- Material: Standard bearing steel
- Tolerance Class: P0/PN2 / ABEC 1
- Temperature Range: -30 to +80 degrees Celsius
Key Features:
- Pre-filled with SKF LGEP2 extreme pressure grease (25-35% filling)
- Contact seals on both sides for superior protection
- Sheet steel cage construction for durability
- Lubrication groove with lubrication holes on outer ring
- Standard clearance specification
- Special high-pressure lithium soap grease formulation
Common Applications:
- Conveyor systems and pulleys
- Small to medium industrial machinery
- Agricultural equipment
- Material handling systems
- Processing equipment
This bearing is particularly well-suited for applications requiring protection against contamination and where regular relubrication may be difficult. The combination of contact seals and premium LGEP2 grease makes it an excellent choice for harsh operating environments.
Alternative References: BS2-2208-2RS/VT143, BS2-2208-2RSVT143
