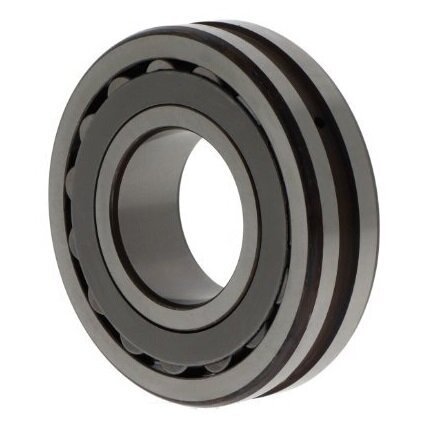

24148CCK30/W33 SKF Spherical Roller Bearing 240mm x 400mm x 160mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Tapered (1:30)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
240mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
400mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
160mm
Reference
24148CCK30/W33, 24148CCK30W33, 24148 CCK30/W33
Additional Reference:
10031042
Brand
SKF
Quick Order Code
BB-497069
Product Description
This high-capacity SKF spherical roller bearing combines robust engineering with precision design, making it ideal for heavy industrial applications where significant loads and potential misalignment are present. The 24148CCK30/W33 features a tapered bore with a 1:30 taper ratio, providing enhanced shaft mounting and retention capabilities.
Key Features
- Self-aligning capability to compensate for shaft misalignment and deflection
- W33 specification with lubrication groove and three holes for optimal lubrication distribution
- Two window-type steel cages with flangeless inner ring design
- Guide ring precisely centered on the inner ring
- Tapered bore (1:30) for secure shaft mounting
- Temperature operational range from -30°C to +200°C
Technical Specifications
| Bore Diameter: | 240mm |
| Outside Diameter: | 400mm |
| Width: | 160mm |
| Bore Type: | Tapered (1:30) |
| Clearance: | Standard |
| Tolerance Class: | P0/PN2 / ABEC 1 |
| Material: | Standard bearing steel |
