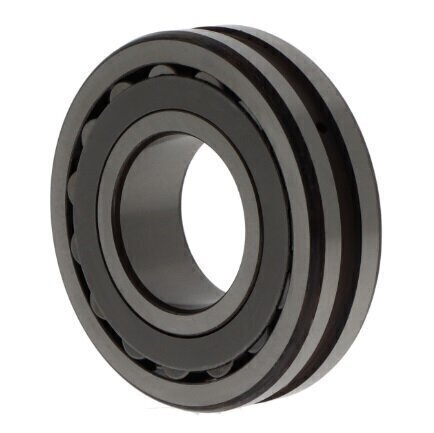

23226CCK/C3W33 SKF Spherical Roller Bearing 130mm x 230mm x 80mm
This premium SKF spherical roller bearing (23226CCK/C3W33) is engineered for superior performance in demanding industrial environments. Featuring a tapered bore with a 1:12 taper ratio, this bearing combines exceptional load-handling capabilities with advanced self-aligning properties to accommodate shaft misalignment and deflection.
The bearing incorporates the W33 design with an integrated lubrication groove and three precision holes in the outer ring, ensuring optimal lubricant distribution throughout operation. Its CC design features two window-type steel cages with a flangeless inner ring and guide ring centered on the inner ring for enhanced stability and performance.
Technical Specifications:
- Inside Diameter: 130mm
- Outside Diameter: 230mm
- Width: 80mm
- Bore Type: Tapered (1:12)
- Clearance: C3 (increased internal clearance)
- Temperature Range: -30 to +200°C
- Tolerance Class: P0/PN2 / ABEC 1
- Material: Standard bearing steel
Design Features:
- Self-aligning capability for maximum operational flexibility
- Enhanced W33 lubrication system with groove and three holes
- Robust sheet steel cage construction
- Open bearing design without seals
- Standard version configuration
Common Applications:
- Heavy industrial machinery and equipment
- Mining and construction equipment
- Material handling systems
- Steel manufacturing facilities
- Paper processing machinery
- Industrial gearboxes
This bearing is particularly suited for applications requiring high load capacity and misalignment accommodation in challenging operating conditions. Alternative part numbers include 23226CCK/C3W33, 23226CCKC3W33, and 23226 CCK/C3W33.
