Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-497720

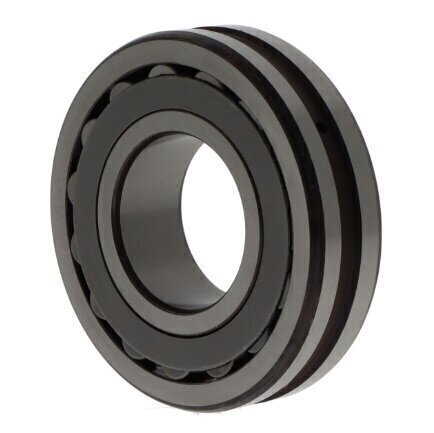

23152CCK/C4W33 SKF Spherical Roller Bearing 260mm x 440mm x 144mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C4
Inside Diameter
260mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
440mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
144mm
Reference
23152CCK/C4W33, 23152CCKC4W33, 23152 CCK/C4W33
Additional Reference:
10044482
Brand
SKF
Quick Order Code
BB-497720
Product Description
This high-performance SKF spherical roller bearing combines robust engineering with advanced design features for heavy industrial applications. The 23152CCK/C4W33 features a tapered bore (1:12) and incorporates SKF's W33 design with a lubrication groove and three holes in the outer ring for superior lubricant distribution, ensuring reliable operation in demanding conditions.
Key Features:
- W33 specification featuring lubrication groove and three holes for optimized lubrication
- Two window-type steel cages with flangeless inner ring design
- Guide ring centered on inner ring for enhanced stability
- C4 internal clearance for high-speed applications
- Operating temperature range from -30°C to +200°C
Technical Specifications:
- Inside Diameter: 260mm
- Outside Diameter: 440mm
- Width: 144mm
- Bore Type: Tapered (1:12)
- Cage Material: Sheet steel
- Material: Standard bearing steel
- Clearance: C4
- Tolerance Class: P0/PN2 / ABEC 1
- Configuration: Open bearing (unsealed)
Typical Applications:
- Heavy industrial gearboxes
- Large mining equipment
- Steel mill machinery
- Paper mill equipment
- Heavy-duty crushing and screening equipment
- Large industrial fans and blowers
This bearing is particularly suited for applications requiring high-speed operation and where precise alignment is challenging to maintain. The self-aligning capabilities combined with the C4 clearance make it ideal for operations involving elevated temperatures and high rotational speeds.
Alternative References: 23152CCK/C4W33, 23152CCKC4W33, 23152 CCK/C4W33
