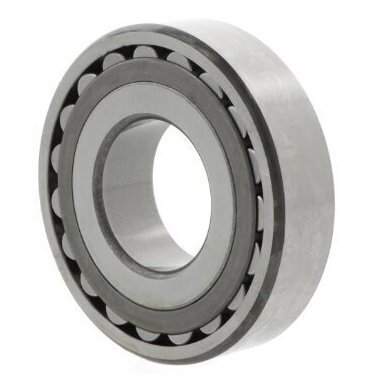

23060CC/W33 SKF Spherical Roller Bearing 300mm x 460mm x 118mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
300mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
460mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
118mm
Reference
23060CC/W33, 23060CCW33, 23060 CC/W33
Additional Reference:
10010041
Brand
SKF
Quick Order Code
BB-494077
Product Description
This high-capacity SKF Spherical Roller Bearing is engineered to deliver exceptional performance in heavy industrial applications. The 23060CC/W33 model features advanced self-aligning capabilities, making it ideal for applications where shaft misalignment, deflection, and bending are common challenges.
Technical Specifications
- Dimensions: 300mm (bore) x 460mm (OD) x 118mm (width)
- Cylindrical bore configuration
- Standard internal clearance
- Operating temperature range: -30°C to +200°C
- Tolerance class: P0/PN2 / ABEC 1
- Standard bearing steel construction
- Sheet steel cage design
- Open bearing configuration (non-sealed)
Design Features
- W33 design incorporating lubrication groove and 3 holes in outer ring for optimal lubricant distribution
- CC design featuring two window-type steel cages
- Flangeless inner ring with centered guide ring for enhanced stability
- Capable of handling substantial radial and bi-directional axial loads
Recommended Applications
- Heavy industrial machinery and equipment
- Large-scale mining operations
- Steel manufacturing facilities
- Industrial gearbox systems
- Heavy-duty conveyor systems
- Large rotating equipment
- Power generation machinery
This bearing's robust design and superior load-handling capabilities make it particularly suited for demanding applications where reliability and performance are crucial. The W33 lubrication system ensures efficient distribution of lubricant throughout the bearing, contributing to extended service life and reduced maintenance requirements.
Alternative part references: 23060CC/W33, 23060CCW33, 23060 CC/W33
