Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-494078

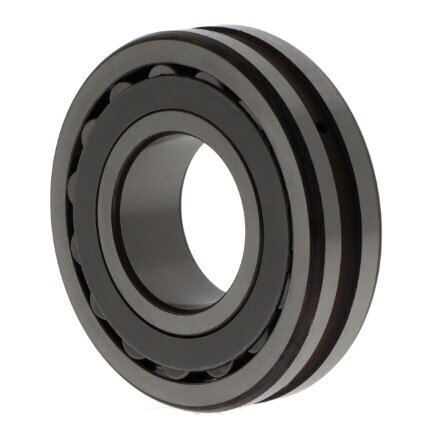

23060CCK/W33 SKF Spherical Roller Bearing 300mm x 460mm x 118mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
Standard
Inside Diameter
300mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
460mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
118mm
Reference
23060CCK/W33, 23060CCKW33, 23060 CCK/W33
Additional Reference:
10010044
Brand
SKF
Quick Order Code
BB-494078
Product Description
This premium SKF spherical roller bearing is engineered for heavy-duty industrial applications where exceptional load-bearing capacity and misalignment tolerance are essential. The self-aligning design effectively manages shaft misalignment and deflection, while the tapered bore (1:12) ensures precise mounting and adjustment capabilities.
Key Features
- W33 specification with lubrication groove and 3 holes in outer ring for superior lubricant distribution
- CC design featuring two window-type steel cages and flangeless inner ring
- Guide ring centered on inner ring for enhanced stability
- Standard bearing steel construction for maximum durability
- Operating temperature range from -30°C to +200°C
- Tolerance class P0/PN2 (ABEC 1) for precise operation
Technical Specifications
- Inside Diameter: 300mm
- Outside Diameter: 460mm
- Width: 118mm
- Bore Type: Tapered (1:12)
- Cage Type: Sheet steel
- Design: Open bearing (unsealed)
- Clearance: Standard
Common Applications
- Heavy industrial machinery
- Large-scale mining equipment
- Steel mill machinery
- Heavy-duty gearboxes
- Industrial crushers and mills
- Large conveyor systems
- Heavy construction equipment
This large-dimension bearing is particularly suited for applications requiring precise mounting and superior load handling capabilities. The W33 lubrication feature ensures optimal lubricant distribution throughout the bearing, promoting extended service life and reliable operation under demanding conditions.
Reference Numbers: 23060CCK/W33, 23060CCKW33, 23060 CCK/W33
