Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-495964

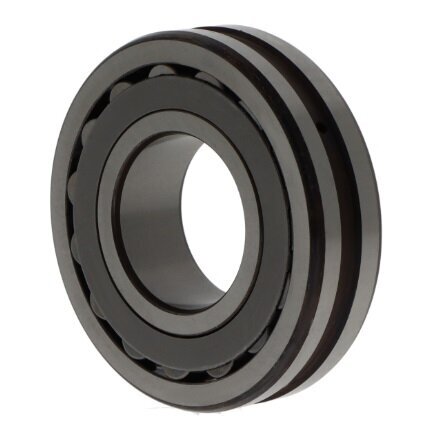

23060CCK/C3W33 SKF Spherical Roller Bearing 300mm x 460mm x 118mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C3
Inside Diameter
300mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
460mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
118mm
Reference
23060CCK/C3W33, 23060CCKC3W33, 23060 CCK/C3W33
Additional Reference:
10020450
Brand
SKF
Quick Order Code
BB-495964
Product Description
This premium SKF spherical roller bearing delivers exceptional performance and reliability in heavy-duty industrial applications. Engineered with SKF's world-class technology, this self-aligning bearing features a tapered bore (1:12) design and enhanced C3 clearance for optimal performance in demanding conditions.
Key Features
- W33 design featuring lubrication groove and three holes for superior lubricant distribution
- Two window-type steel cages providing enhanced stability and performance
- Flangeless inner ring design with guide ring centered on the inner ring
- Sheet steel cage construction for durability
- Operating temperature range of -30 to +200°C
- Tolerance class P0/PN2 (ABEC 1) for precision operation
Technical Specifications
- Bore Diameter: 300mm
- Outside Diameter: 460mm
- Width: 118mm
- Bore Type: Tapered (1:12)
- Clearance: C3
- Material: Standard bearing steel
- Seal Type: Open bearing
- Reference Numbers: 23060CCK/C3W33, 23060CCKC3W33, 23060 CCK/C3W33
Common Applications
- Heavy industrial machinery and equipment
- Large-scale mining operations
- Steel mill processing equipment
- Heavy-duty construction machinery
- Industrial processing plants
- Large power generation systems
- Paper mill machinery
This robust bearing is specifically designed for applications requiring superior load capacity and misalignment compensation. The C3 clearance makes it particularly suitable for applications with higher operating temperatures or where tight fits are used. The tapered bore design facilitates secure mounting and dismounting, while the W33 lubrication features ensure optimal grease distribution for extended service life.
