Bearings
Spherical Roller Bearings
SKF Spherical Roller
Quick Code: BB-494068

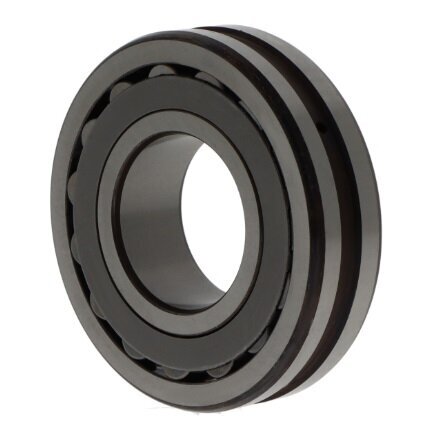

23048CCK/C3W33 SKF Spherical Roller Bearing 240mm x 360mm x 92mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Bore Type
Tapered (1:12)
Cage
Sheet steel cage
Clearance
C3
Inside Diameter
240mm
Material
Standard bearing steel
Outer ring
Lubrication groove with lubrication holes on outer ring
Outside Diameter
360mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
Standard version
Width
92mm
Reference
23048CCK/C3W33, 23048CCKC3W33, 23048 CCK/C3W33
Additional Reference:
10009998
Brand
SKF
Quick Order Code
BB-494068
Product Description
This premium SKF Spherical Roller Bearing is engineered for superior performance in demanding industrial applications. Featuring a tapered bore with a 1:12 ratio, this robust bearing combines exceptional load-bearing capabilities with self-aligning properties to ensure optimal operation even under challenging conditions.
Key Features
- Precise dimensions: 240mm bore x 360mm outer diameter x 92mm width
- W33 specification featuring lubrication groove and 3 holes in outer ring for enhanced lubrication
- CC design with two window-type steel cages
- Flangeless inner ring with centered guide ring
- C3 internal clearance for improved performance
- Operating temperature range: -30°C to +200°C
- Manufactured to P0/PN2 / ABEC 1 tolerance class
Technical Specifications
- Reference numbers: 23048CCK/C3W33, 23048CCKC3W33, 23048 CCK/C3W33
- Construction: Standard bearing steel
- Sheet steel cage design
- Open bearing configuration (unsealed)
- Standard version specifications
Common Applications
- Heavy industrial machinery and equipment
- Paper processing machines
- Mining and construction equipment
- Steel manufacturing facilities
- Large gearbox applications
- Industrial fans and blowers
- Heavy-duty conveyor systems
This bearing is particularly suited for applications requiring high radial and axial load capacity while accommodating misalignment. The W33 lubrication feature ensures reliable performance and extended service life in demanding industrial environments.
