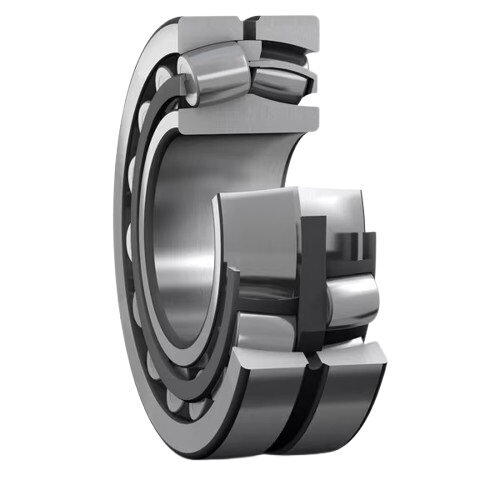

22330CCJA/W33VA405 SKF Spherical Roller Bearing for Vibratory Applications 150mm x 320mm x 108mm
Help Articles
Also Try
Metric
Metric Oil Seals
KRV-PP Series
Bearing Adaptor Sleeves
SKF Ball Bearings
Buy Now
Product Specification
Bore Type
Cylindrical
Cage
Sheet steel cage
Clearance
C4
Inside Diameter
150mm
Material
Standard bearing steel
Outer ring
Without groove/lubrication holes
Outside Diameter
320mm
Seal
None, open bearing
Temperature range
-30 to +200 °C
Tolerance class
Bore tolerance P5 and outside diameter tolerance P6
Version
For vibrating load
Width
108mm
Reference
22330CCJA/W33VA405, 22330CCJAW33VA405, 22330 CCJA/W33VA405
Additional Reference:
10009645
Brand
SKF
Quick Order Code
BB-494027
Product Description
This heavy-duty spherical roller bearing is specifically engineered for demanding vibratory applications, offering exceptional performance under extreme operating conditions including high loads, speeds, accelerations, and centrifugal forces.
Key Features:
- W33 design featuring lubrication groove and 3 holes for optimal lubricant distribution
- CC configuration with two window-type steel cages and flangeless inner ring
- JA pressed cage design made from unhardened sheet steel, centered on outer ring
- VA405 specification for enhanced vibratory performance with surface hardened cages
- Self-aligning capabilities to compensate for shaft misalignment
- C4 internal clearance for superior performance in vibrating conditions
Technical Specifications:
- Inside Diameter: 150mm
- Outside Diameter: 320mm
- Width: 108mm
- Bore Type: Cylindrical
- Cage Material: Sheet steel
- Operating Temperature Range: -30 to +200°C
- Tolerance Class: P5 bore tolerance and P6 outside diameter tolerance
- Configuration: Open bearing without seals
Ideal Applications:
- Vibratory screeners and separators
- Road construction equipment and rollers
- Industrial saw frames
- Crushing and screening equipment
- Heavy-duty construction machinery
- Mining vibrating equipment
This robust SKF bearing is precision-manufactured to deliver reliable performance in the most demanding vibratory applications. The specialized VA405 design ensures enhanced durability and extended service life even under severe vibrating conditions, making it an ideal choice for critical industrial machinery where downtime must be minimized.
Reference Numbers: 22330CCJA/W33VA405, 22330CCJAW33VA405, 22330 CCJA/W33VA405
